Description:

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.

Features:

• 90-degree V-Twin design with overhead V-valve.
• High-performance lubrication system.
• Electronic-spark ignition.
• Automatic compression release.
• Twin-barrel, internally vented carburetor with fuel shut-off solenoid.
• High-efficiency oil cooler (FX801 and FX850 only).
• Rotating grass screen with metal guard.
• Heavy-duty, dual-stage, canister air filter.
• Solenoid-shift electric starter.
• Cast-iron cylinder liners.
• Spin-on oil filter.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

Aeration is vitally important for healthy turf, and it’s also an opportunity to expand your services. A new tool to tackle aeration with more efficiency, the stand-on Aer Storm™ aerator allows you to get more done than ever before. Designed and engineered for long-lasting durability, improved productivity, and all-day comfort, it’s time to take on your next challenge with the next generation of aeration.

Features:

• Easy Depth Adjustment and Engagement: Featuring a simple and intuitive depth selection pin with an easy-grip rubber knob, select aerating depths of 1" to 4" in 1/2" increments to meet the needs of each specific property. Hydraulic tine engagement, via a convenient foot-activated switch, allows you to keep your hands on the steering controls for maximum productivity and safety. Plus, a tine activation switch on the instrument panel prevents accidental engagement or disengagement while working or transporting.
• Accessible Controls: Incredibly easy to use, its ergonomic drive control levers make it a cinch to maneuver and allows you to get more done.
• Stay in the Loop: A full-featured and easy-to-view instrument panel keeps you informed of exactly what you need to know.
• Experience an Unmatched, Ultra-Comfortable Ride: A spacious operator platform featuring suspension and a padded, bolstered cushion ensures a smooth, comfortable ride all day long.
• More Uptime: Removable cushion and lower panel allow quick and easy service access to the hydro tank and tines.
• Solid Design for Years of Dependable Service: Heavy-duty, durable construction ensures years of dependable service and worry-free productivity.
• Huge Power, up to 23 Hp: 23 hp Kohler® Command Pro® engine packs the power you need alongside exceptional efficiency and dependable performance.

Specifications

• Product Specification: AerStorm
• Model Number: AS30-23CV
• Type: Plug-style aeration. Mid/under-belly mount.
• Aerating Width: 30 in.
• Aerating Depth/Adjustment: 1 in. to 4 in. in 1/2 in. increments. Simple and intuitive depth selection pin with easy-grip rubber knob.
• Tines: 48 self-cleaning, replaceable, steel coring tines
• Tine Activation & Pressure: Hydraulic tine engagement (raise and lower) via a foot-activated switch. Tine activation switch on the instrument panel prevents accidental engagement/disengagement while working or transporting. Adjustable hydraulic down-pressure helps to penetrate even the hardest and driest soils to ensure effective aeration performance in all conditions.

Engine Specification

• General Type: Heavy-duty Industrial/commercial
• Brand: Kohler Command Pro
• Model: CV732
• Horsepower: 23.5 HP @ 3600 RPM
• Torque: 40.3 ft. lb. (peak)
• Type: 4 cycle gas, twin-cylinder, air-cooled, OHV, vertical shaft engine
• Displacement: 747 cc (45.6 cu.in.)
• Cylinders: 2 cast-iron sleeves
• Governor: Mechanical type governor with variable speed control set at 3600 RPM (±100 RPM), idle set at 1800 RPM (±150 RPM)
• Air Intake Group: Large capacity 2-stage canister air filter
• Exhaust Group: Single exhaust canister muffler
• Fuel Pump Group: Integral fuel pump with Inline fuel filter, internal fuel line vent; float feed; two-barrel, adjustable idle, afterfire solenoid.
• Oil Pump Group: Full pressure lube, with full-flow filter, 2-quart oil capacity
• Starter/Electrical/Charging System: "12-volt ""maintenance-free"" sealed battery with alternator, solid-state ignition with key start. 15 amp charging system, regulated."
• Engine Deck Thickness: 1/4" steel
• Fuel Tank: 5.5 gallons (20.8 liters) tank with molded-in cup holder
• Drive Wheels/Tires: 18 x 6.5 - 8 four-ply pneumatic tubeless, radius edge
• Caster Wheels: 13 x 6.5 - 6 Flat-Free (semi-pneumatic)
• Brakes: Lever-actuated linkage to brakes on both drive wheels
• Operator Platform: Heavy gauge steel with extruded star pattern for no-slip footing. Dual adjustable suspension for operator comfort level preference.
• Operator Comfort Pad: Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics
• Drive System Type: Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel
• Hydro Pumps: Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running the engine; one cooling fan
• Drive Wheel Motors: Two Parker TG 14.5 cu. inch cast-iron high-torque wheel motors
• Hydro Fluid Cooling Group: 3.0 qt. capacity cooling reservoir; uses SAE 20W50 fluid and 10-micron filter
• Steering/Travel Control: Twin lever steering control with individual control to each wheel
• Dump Valves: Allows for movement without the engine running
• Axles: 1.25" heavy-duty, straight motor shafts
• Wire Harness: 14 and 16 gauge wire
• Safety Group: Footplate-actuated operator presence system interlock to engine kill
• Forward Speed Range: 0 up to 7.0 mph
• Reverse Speed Range: 0 up to 3.0
• Year: 2023
• Manufacturer: Scag Power Equipment
• Model: AS30-23CV
• Style: Stand On
• Price: Call for Price
• Deck Size Discharge Type Engine: Engine Manufacturer Kohler Command Pro Horse Power 23.5 HP @ 3600 RPM Engine Type CV732 Displacement General Transmission Wheel Size Fuel Capacity 5.5 gal. (20.8 L)

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

DESCRIPTION

Elevate your mowing experience with the 42" Hero Cutter Deck, driven by a robust 21 HP Kawasaki® FR651V V-twin engine. Crafted for exceptional performance and durability, this mower boasts a heavy-duty construction and an array of innovative features.

Features:

• Proven Transaxles: The ZT drive systems' dual hydro transaxles ensure smooth power delivery to the drive wheels, offering reliable performance and speeds of up to 7 MPH. For added reliability, the 48" model comes equipped with Tuff Torq transaxles.
• Deep, Fabricated, and Welded Cutter Decks: Designed for heavy-duty use, the Hero Cutter Deck guarantees an outstanding quality-of-cut, effortlessly handling large grass volumes at higher speeds.
• Ogura PTO Clutch Brake: Delivers excellent starting and stopping power for the cutter deck, featuring an adjustable air gap for prolonged lifespan.
• Easy Foot-Pedal Deck Lift: The spring-assisted foot-pedal cutter-deck lift mechanism facilitates smooth and effortless raising and lowering of the cutter deck.
• Contoured, Bolstered, High-Back Seat: Enjoy ultimate comfort during extended mowing sessions with the ultra-comfortable and adjustable seat, complete with armrests for added support.
• Low-Maintenance Mower Design: With fewer grease points, this mower offers enhanced operator convenience and ease-of-ownership, minimizing downtime.
• High-Strength Steel Frame: Built to last, the tubular-steel main frame ensures unmatched strength and longevity, guaranteeing years of dependable service.
• Powerful and Efficient Engine Options: Choose between the reliable Kawasaki® FR or Kohler® 7000 Series engines, providing up to 24 HP of dependable power.

Specifications:

• Total Fuel Capacity: 3.5 gallons (36" and 42"); 5.5 gallons (48", 52" and 61")
• Drive Tires: Various sizes depending on the model
• Caster Tires: Various sizes depending on the model
• Seat: Padded with armrests, adjustable forward and back (tools required); armrests not available on 36" and 42" models
• Drive System Type: Hydro-Gear ZT2800 Transaxle (36", 42" and 52"); Tuff Torq TZ450 Transaxle (48"); Hydro-Gear ZT3100 Transaxle (61")
• Pumps: Internal Pump: 10 cc; Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph; Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 42", 48", 52" and 61"
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) - (36", 42", 48" and 52"); Ogura GT2 (108 ft lb) - (61"); Adjustable air-gap for extended life

Dimensions

• Length: 68.5"
• Width (chute down): 54.5"
• Width (chute in transport position): 43"
• Height: 41"
• Weight: 595 lb

Accessories:

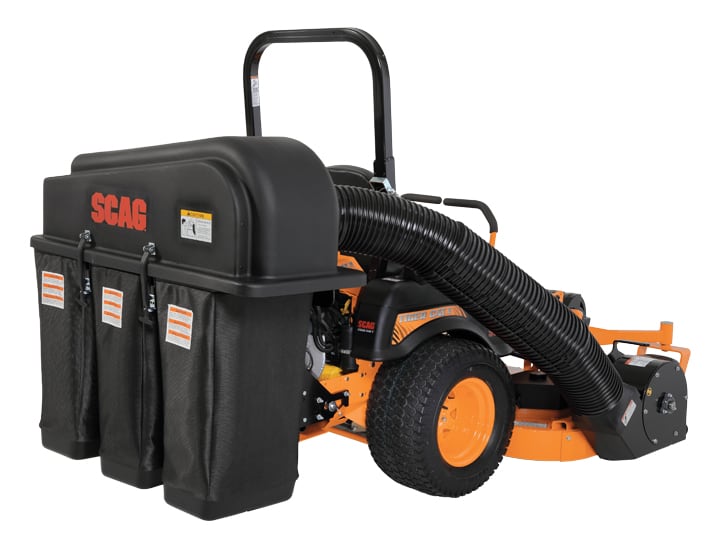

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
• Cutter Deck Transport Latch

Width	Weight	Height	Length
60.5 Inch	612 Pounds	41 Inch	0 Inch

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.

Features:

Mow with Ease

• Front Swivel Caster Wheels: Enhance maneuverability in landscaped areas with front swivel caster wheels. Convert fixed wheel models to swivel with an available accessory.

Fully Fabricated and Welded Steel Cutter Deck

• Military-Grade Steel Deck: Constructed with a 14-gauge, grade 100 Military-Grade steel deck shell, 12-gauge spindle reinforcement plate, and ¼” side reinforcement bar for unmatched durability and a quality cut.

Fully Fabricated and Welded Steel Frame

• Military-Grade Steel Frame: The steel frame is over 200% stronger than standard drawing steel used in common stamped frames and decks, providing superior strength and longevity.

Single Point Height-of-Cut Adjustment

• Fine-Tuned and Simple: Easily adjust the cutting height from a single location, with settings from 1.5” to 5” in .25” increments, eliminating the need for multiple adjustments.

Offset Blade Setup

• Simplified Deck Drive System: Features a less complex, easier-to-maintain offset blade design compared to traditional timed deck setups. Reduces repair/replace time for belts.

Scag Level Quality-of-Cut

• Unmatched Performance: Large cutting chamber processes more grass and efficiently handles wet and lush springtime grasses. Oversized discharge opening for superior performance.

Operator Control Panel

• Ergonomic Controls: Controls are designed to match the natural angles of your hands, making them easily accessible. Includes blade brake engagement, drive engagement, recoil start, throttle/choke, hour meter, and park brake.

Oversized Adjustable Controls

• Achieve Maximum Comfort: Oversized handles with internally routed cables for protection and tool-free height adjustment for operator comfort. Includes vertical adjustment for transportation or storage.

Discharge – Mulch – Bag

• 3-in-1 Versatility: Offers discharge, mulch, or bag options. Standard equipment includes discharge chute, deck plug and mulch plate, bagging baffle, and fabric bag for flexible operation.

Powerful Transmission & Engine Combo

• Maximum Power for Tough Cuts: Combines the GT MV702 transmission with the Kohler CV224 engine for optimal performance in demanding cutting conditions.

Specification:

• Description: 30″ fully fabricated steel cutter deck, Kohler 224CV engine – recoil-start engine
• Horsepower: 7

Product Dimensions

• Length – Transport (handles in upright transport position): 41″
• Length – Minimum (handles in highest operating position): 66″
• Length – Max (handles in lowest operating position): 73.5″
• Tracking Width: 28.75″
• Width (w/ discharge chute): 36.75″
• Width (w/ discharge block off plate): 31.5″
• Height – Lowest Operating: 36.75″
• Height – Max Operating: 45.25″
• Height – w/ Handle Bar in Storage Position: 57.5″
• Operating Weight – Bagging: 220 lbs.
• Operating Weight – Mulching: 214 lbs.
• Operating Weight – Discharging: 213 lbs.

General Specifications

• Total Fuel Capacity: 1 gallon (0.37 gallon capacity for California models)
• Rear Tires: 10.5″ x 3″ rubber tire with glass-filled polypropylene wheel
• Front Tires: 9” x 2.25” rubber tire with glass-filled polypropylene wheel
• Drive System Type: GT MV 702 Transmission
• Forward Ground Speed: Up to 4 mph
• Parking Brake: Hand lever

Deck Specifications

• Cutting Width: 30″
• Type: Extra-strong, fully fabricated and welded steel cutter deck. Offset blade, non-timed deck setup.
• Cutting Height: 1.5″ to 5″ in .25″ increments
• Blade Type: Optimized for maximum performance whether discharging, mulching, or bagging
• Deck Lift: Hand lever, single-point adjustment
• Construction: 14-gauge, grade 100 Military-Grade steel deck shell with 12-gauge spindle reinforcement plate, ¼” trim side reinforcement bar for extra protection against impacts
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Blade brake clutch allows operator to disengage cutter blades without shutting off the machine
• Discharge, Mulch, Bag: Standard
• Bag Capacity: 2.5 Bushels

Width	Weight	Height	Length
			0 Inch

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

• Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake delivers 74 ft. lb. of holding strength, ensuring excellent starting and stopping power for the cutter deck. It features an adjustable air gap for extended durability.

Deep, Fabricated, and Welded Cutter Decks

• Heavy-duty Hero Cutter Deck Design: The Liberty Z mower incorporates a deep, fabricated cutter deck that excels at handling high volumes of grass at increased speeds. The deck is designed for optimal quality-of-cut and is built to withstand rigorous use.
• Heavy-duty, Aluminum, Sealed Ball Bearing, Blade-Drive Spindles: Ensures reliable performance season after season.

High-Strength Steel Frame

• Solid Design for Years of Dependable Service: The main frame is constructed from tubular steel, providing unmatched strength and durability.

Low-Maintenance Mower Design

• More Uptime: The Liberty Z is designed with fewer grease points, enhancing operator convenience and ease-of-ownership.

Proven Transaxles

• Speeds Up to 7 MPH: Equipped with proven dual hydro transaxles (Tuff Torq TZ450, or Hydro-Gear ZT-2800 or ZT-3100 depending on the model), ensuring smooth and solid power delivery to the drive wheels.

Contoured, Bolstered, High-Back Seat

• Ride in Comfort: The ultra-comfortable seat is adjustable with tools, contoured for improved comfort, and features armrests. Armrests are standard on 48″, 52″, and 61″ models, with an optional kit available for 36″ and 42″ models.

Easy Foot-Pedal Deck Lift

• Easy Up, Easy Down: The foot-pedal cutter-deck lift is spring-assisted, making raising and lowering the cutter deck smooth and effortless.

Powerful and Efficient Engine Options

• Reliable Power, Up to 27 HP: Choose from a variety of proven air-cooled V-twin engine options, providing ample power to tackle a wide range of mowing tasks effectively.

Specification:

GENERAL

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with armrests, adjustment forward and back (tools required)
• DRIVE SYSTEM
• Drive System Type: Tuff Torq TZ450 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• DECK
• Cutting Width: 52″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) – for 52″ Liberty Z
• Adjustable air-gap for extended life.

Width	Weight	Height	Length
0 Inch	646 Pounds	0 Inch	0 Inch

Description:

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Scag’s cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.

Scag’s Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals’ demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful, manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.

Features:

• Strength — Scag’s tough cutter-blade spindles and Tri-Plate construction ensure solid performance and long life. A replaceable trim-side wear pad protects deck from damage.
• Productivity — An extra-large discharge opening, paired with the Turbo Baffle, enhances discharge for even clipping dispersal.
• Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.

Specifications:

• Total Fuel Capacity: 13 gallons
• Drive Tires: 24" x 12"-12"
• Caster Tires: 13" x 6.5"-6"
• Seat: 4-point iso-mounted mid-back, mounted on operator-suspension platform

DRIVE SYSTEM:

• Drive System Type: Hydro-Gear ZT5400 Transaxle, Two-Speed
• Internal Pump: 16 cc
• Internal Motor: 21 cc
• Forward Ground Speed: 16 mph (high speed), 12 mph (low speed)
• Reverse Ground Speed: 8 mph (high speed), 5 mph (low speed)
• Parking Brake: Foot-operated pedal

CUTTING DECK:

• Cutting Width: 61"
• Deck Type: Velocity Plus™
• Cutting Height: 1.25" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Deck Construction: Tri-plate cutter deck constructed from 3 steel plates totaling nearly 1/2" thickness, reinforced at cutter deck spindles
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT5 (350 ft-lb), adjustable air-gap for extended life

PRODUCT DIMENSIONS:

• Length: 85.5"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height (ROPS Folded): 49.5"
• Height (ROPS up): 67"
• Weight: 1364-1392 lbs

Width	Weight	Height	Length
0 Inch	1392 Pounds	0 Inch	0 Inch

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.

All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).

These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

Hero™ Cutter Deck

Command perfection:

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Hero™ cutter deck is an outstanding performer and delivers beautiful results.

The Hero™ Cutter Deck provides the top line power, precision and performance professionals and homeowners demand. This extra-strong, fully fabricated and welded deck features “maintenance-free” aluminum spindles for years of worry-free performance

Strength — Scag’s tough cutter-blade spindles and Dual-Plate construction ensure solid performance and long life.

Productivity — An extra-large discharge opening enhances discharge for even clipping dispersal.

Engines

Kawasaki FR Series Engines

Residential-Grade Power:

Kawasaki® FR Series engines are compact, 90-degree, V-Twin engines that provide an ideal amount of torque and power. Operation is smooth and quiet for years of dependable homeowner operation. Other features include:

• Two-channel forced-air cooling.
• Pressurized lubrication system.
• High-energy, electronic spark ignition.
• Easy-access oil fill.
• 90-degree V-Twin design with overhead V-valve.
• Cast-iron liners.
• Automatic compression release.

Specifications:

• Model: Liberty Z 42
• Length: 68.5″
• Width (chute down): 54.5″
• Width (chute in transport position): 43″
• Height: 41″
• Weight: 595 lb
• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 4″-5″
• Seat: Optional armrest kit available
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Internal Pump: 10 cc
• Internal Motor: 10 cc (Tuff Torq) / 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 42″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck of 2 steel plates
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable Air-Gap: For extended life

Width	Weight	Height	Length
54.5 Inch	595 Pounds	41 Inch	0 Inch

DESCRIPTION

52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement

FEATURES

• Command perfection - Deep, Fabricated, and Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Hydro-Gear ZT-2800 Transaxles - Speeds Up To 8 MPH: The ZT drive system's dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: The 22 hp and 24 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever
• Cutting Widths: 48" and 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height: 60"
• Weight: 765 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy

Width	Weight	Height	Length
53 Inch	765 Pounds	60 Inch	0 Inch

Description:

The SCAG Power Equipment SPZ-52H-22FX is a zero-turn riding mower engineered for homeowners with mid-sized to large lawns, prioritizing efficiency and top-notch cutting quality. Let's delve into its standout features:

Engine and Power:

• 22 HP Kawasaki® FX691 engine: Ample power for handling most mowing tasks efficiently.
• Hydro-Gear ZT3100 Transaxle: Ensures smooth operation and optimal power transfer.

Cutting Performance:

• 52-inch Heavy-duty Hero Cutter Deck: Wide coverage for faster mowing. Its robust construction guarantees durability and a pristine cut.
• Cutting Height Adjustment: Allows precise cutting height customization from 1.5 inches to 5 inches in 0.25-inch increments, suitable for various grass types.

Maneuverability and Control:

• Zero-turn design: Facilitates sharp turns and effortless navigation around obstacles.
• Foot-operated parking brake: Convenient control for stopping or dismounting the mower.

Additional Features:

• Fold-up armrests: Enhance operator comfort during extended mowing sessions.
• 6.5-gallon fuel capacity: Provides ample fuel for prolonged mowing sessions.
• Large drive tires (22" x 10.5"-12") and caster tires (13" x 6.5"-6"): Offer excellent traction and stability, even on uneven terrain.
• Headlights: Enhance visibility in low-light conditions (availability may vary depending on the seller).

Overall, the SCAG Power Equipment SPZ-52H-22FX is a well-appointed zero-turn mower that strikes a harmonious balance between power, cutting performance, and maneuverability, catering to homeowners with medium to large lawns.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.The Ogura GT5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 350 ft. lb. of holding strength, and an adjustable air gap for long life.

Width	Weight	Height	Length
0 Inch	1364 Pounds	0 Inch	0 Inch

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact machine you’ve always wanted—packing big productivity and versatility into a 21” wide platform. On the job or at home, the SFC-21 delivers a professional quality-of-cut that leaves behind a beautiful lawn, each and every time. Capable of 3-in-1 versatility (mulching, bagging and optional side discharging), it helps you tackle whatever challenges come your way with top-notch results.

EASY HEIGHT-OF-CUT ADJUSTMENT

FINE-TUNED AND SIMPLE

Easy height-of-cut adjustment allows for cutting heights from 1.5” to 4.5” in .5” increments.

Engines

Honda GXV160 Engine

Designed specifically to meet the demands of professionals working in commercial landscaping and other related industries, the Honda GXV160 delivers reliability and efficiency from dusk until dawn. Engineered with precision for smoother performance and quiet operation, this 4-stroke single cylinder engine features an OHV design for increased efficiency and optimal power transfer and is easy-to-start because of its automatic decompression system.

Features:

• Air-cooled, 4-stroke OHV 163 cc engine
• High power-to-displacement ratio
• High quality materials and purpose-built components ensure reliable long-term use
• Engineered for low vibration and quieter noise levels
• Easy starting with an automatic decompression system
• Large fuel tank and superior fuel efficiency for less downtime
• EPA certified

Specifications:

• Product Dimensions
• Length in Operating Position: 63.0 – 68.5 inches (both models)
• Length in Storage Position: 41 inches (both models)
• Tracking Width: 21.2 inches (both models)
• Width: 23.25 inches (both models)
• Height in Operating Position: 32.75 inches (low) / 43.5 inches (high)
• Height in Storage Position: 22 inches (both models)
• Weight (without bagger): 132 lb (SFC-21-5CV), 138 lb (SFC-21-7CV)
• Weight (with bagger): 137 lb (SFC-21-5CV), 143 lb (SFC-21-7CV)
• General Specifications
• General Type: Heavy-duty industrial/commercial (both models)
• Brand: Kohler® Command PRO® (both models)
• Model: CV173 (SFC-21-5CV), CV224 (SFC-21-7CV)
• Horsepower: 5HP @ 3300 RPM (SFC-21-5CV), 7HP @ 3300 RPM (SFC-21-7CV)
• Engine Type: 4-cycle gas, OHV, air-cooled, single-cylinder, vertical shaft (both models)
• Displacement: 173 cc (SFC-21-5CV), 224 cc (SFC-21-7CV)
• Cylinder: One with cast-iron cylinder bore (both models)
• Governor: Mechanical governor with variable speed control set at 3300 rpm, idle set at 1500 rpm (both models)
• Air Cleaner: Quad-Clean™ four-stage, cyclonic air filter (both models)
• Exhaust: Side discharge muffler with guard (SFC-21-5CV), Front discharge muffler with guard (SFC-21-7CV)
• Oil Pump Group: Steel oil pump; Full pressure lubrication with spin-on oil filter (both models)
• Starter/Electrical: Easy-Pull™ recoil start (both models)
• 50-State Compliant: Yes (both models)
• Engine Deck & Fuel Tank
• Engine Deck Thickness: 14 gauge (both models)
• Fuel Tank Capacity: 0.37 gallon (1.4 liters) plastic tank (SFC-21-5CV), 1 gallon (3.785 liters) plastic tank (SFC-21-7CV)
• Wheels & Tires
• Drive Tires: 10.5 x 3 (both models)
• Front Tires: 9 x 2.25 (both models)
• Handlebars & Drive System
• Handle Bars: 1" diameter, thick wall tubing, 3-position adjustable (both models)
• Transmission: GT MG 512 transmission, 3-speed (both models)
• Steering/Travel Control: Variable drive control bar and 3-speed selector lever on handlebar (both models)
• Transmission Output Shaft: 0.50" diameter (both models)
• Safety & Forward Speed
• Safety Group: Handle actuated operator presence system (both models)
• Forward Speed: Up to 4.25 mph (both models)
• Cutter Deck
• Cutter Deck Type: High-vacuum, high-capacity design (both models)
• Deck Construction: 14 gauge deck with 14-gauge replaceable guards for strength and longevity. Deep draw stamped (both models)
• True Cutting Width: 21 inches (53.34 cm) (both models)
• Cutting Height Adjustment: 1.5" to 4.5" in 0.5" increments (both models)
• Cutter Blade: 0.1345 in. thick, milled edge, wear-resistant (both models)
• Blade Engagement: Blade control bar controlled Blade Brake Clutch (BBC), connected to cutter blade (both models)
• Discharge Opening: Rear-discharge with extra wide discharge opening (both models)
• Clutch Type: Heavy-duty Blade Brake Clutch (BBC) (both models)
• Optional Items/Attachments
• Mulching Plug: Included (both models)
• Fabric Grass Catcher: Included; 2.2 bushels (2.74 cu. ft.) (both models)
• Side-Discharge Adapter: Available accessory (both models)

Width	Weight	Height	Length
23.25 Inch	137 Pounds		41 Inch

Description:

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Specifications:

GENERAL

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20″ x 10″-10″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

DRIVE SYSTEM

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump - 10 cc
• Motors: Internal Motor - 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

DECK

• Cutting Widths: Available in 48″ and 52″
• Type: Hero Cutter Deck
• Cutting Height: Adjustable from 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.

Product Dimensions

• 48″ Freedom Z
• Length: 73″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 60″
• Weight: 745 lbs
• 52″ Freedom Z
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lbs

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Features:

TRI-PLATE DECK TOPS:

Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).

FRONT BAFFLE CHAMBER:

Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.

WEAR PAD:

Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• 32" Model: 5 gallons
• 36" Model: 6.75 gallons
• 48", 52", and 61" Models: 8 gallons

Tires

• Drive Tires:
• 32" Model: 20" x 6.5"-10"
• 36" Model: 20" x 8"-10"
• 48" and 52" Models: 24" x 9.5"-12"
• 61" Model: 24" x 12"-12"
• Caster Tires:
• 32" and 36" Models: 11" x 4"-5"
• 48" and 52" Models: 13" x 5"-6"
• 61" Model: 13" x 6.5"-6"

Seat

• Extra-large comfort cushion

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps:
• 32" and 36" Models: Hydro-Gear 10 cc
• 48", 52", and 61" Models: Hydro-Gear 12 cc
• Motors:
• 32" and 36" Models: Parker 12 ci
• 48", 52", and 61" Models: Parker 14 ci
• Forward Ground Speed:
• 32" and 36" Models: 8.5 mph
• 48", 52", and 61" Models: 10.5 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck

• Cutting Widths: 32", 36", 48", 52", and 61"
• Type:
• 32" and 36" Models: Advantage
• 48", 52", and 61" Models: Velocity Plus™
• Cutting Height: 1.5" to 4.5" in 0.25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• 32" Model: Dual-plate construction
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement:
• 32", 36", 48", and 52" Models: Ogura GT2.5 (150 ft lb)
• 61" Model: Ogura GT3.5 (250 ft lb) with adjustable air-gap for extended life

Width	Weight	Height	Length
0 Inch	832 Pounds	0 Inch	0 Inch

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Width	Weight	Height	Length
0 Inch	1117 Pounds	0 Inch	0 Inch

Description:

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Features:

Dual Liquid Tanks

• Capacity: Turf Storm XL has a 60-gallon capacity, while Turf Storm has a 30-gallon capacity.
• Measurement Indicators: Highly translucent tanks with raised indicators for accurate fill levels.
• Spray Booms: Turf Storm XL features 8-feet-wide booms with five nozzles, allowing for spraying widths of 2, 6, 8, or 10 feet. Turf Storm has a 65-inch wide spray boom, offering spraying widths of 2, 6, or 8 feet.
• Hose Reel: Turf Storm XL includes a 75-foot hose reel, while Turf Storm has a 15-foot flex hose, enabling access to tough spaces.

Spread up to 25 Feet

• Hopper Capacity: Turf Storm XL has a 220-pound dry/granular capacity, and Turf Storm has a 120-pound capacity.
• Spreader Motor: High-torque electric spreader motor facilitates up to a 25-foot spread width.

Wide Stance for Optimum Maneuverability and Stability

• Dynamically Balanced: Ensures stable footing without the need for locking front casters (Turf Storm XL only).

Ease of Use and Maintenance

• Drain Plug: Quick and efficient drain plugs at the lowest part of the tanks for easy draining and cleaning.

More Accurate Application Pattern

• Spreader Motor: High-torque electric motor reduces system heat, allowing for more precise control and accurate application.

Finger Tip Controls

• Operator Control Station: Ergonomic design with drive control lever for intuitive operation; all controls within easy reach.

Maximize Comfort

• Operator Platform: Spacious platform with extra-large comfort cushion and coil-spring suspension for a smooth ride.

23hp Vanguard Engine

• Power: 23 horsepower Briggs Vanguard® engine provides ample power, efficiency, and reliable performance.
• Charging System: 50-amp system ensures dependable operation of accessories like pumps, lights, and foam markers.

Easy Access

• Maintenance: Removable cushion and open lower area facilitate quick access to hydro drive pumps, reservoir, and mechanical components for easy servicing.

Specification:

Engine

• Engine: Briggs Vanguard™
• Horsepower: 23 hp
• Charging System: 12 Volt, 50 Amp

Fuel Capacity

• Total Fuel Capacity: 4.5 gallons

Wheels

• Front Wheel(s): 16″ x 6.5″-8″, pneumatic
• Rear Wheels: 20″ x 7″-10″, 4-ply

Currently Available Accessories

• Foamer Kit
• LED Light Kit
• 7 GPM pump

Drive System

• Drive System: Dual Pump and Motor
• Pumps: Hydro-Gear: PG Series 10 cc
• Motors: Parker TG Series: 14.5ci

Performance

• Ground Speed:
• Up to 8.5 MPH forward
• Up to 5 MPH reverse
• Parking Brake: Hand Lever

Dimensions

• Length: 65″
• Width (spray booms in): 35.5″
• Width (spray booms out): 65″
• Height: 50″

Weight

• Dry Weight: 859 lb

Warranty

• Warranty: 2-Year Commercial & Non-Commercial Warranty; 90-day Rental

Width	Weight	Height	Length
0 Inch	859 Pounds	50 Inch	65 Inch

An indispensable tool for the serious landscape chemical applicator or those looking to expand their offerings, the Turf Storm™ is built Scag® tough to treat large properties or residential lawns. Offering liquid and dry capacities for maximum productivity and profitability, the Turf Storm helps create better turf more efficiently than ever before.

Width	Weight	Height	Length
0 Inch	220 Pounds	0 Inch	0 Inch
