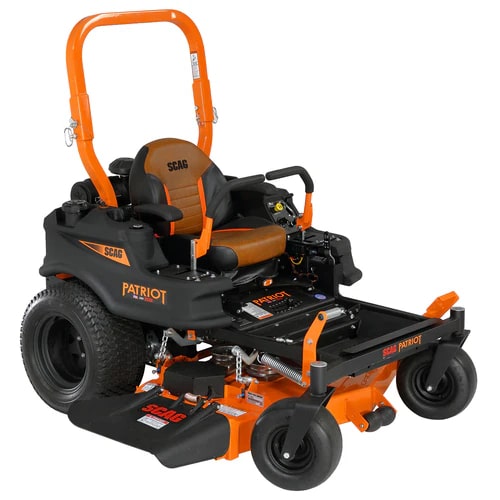

Scag Patriot 61" Hero Deck, 26hp Briggs Vanguard Zero-Turn Riding
$9,499.00
Title
Scag Patriot 61" Hero Deck, 26hp Briggs Vanguard Zero-Turn Riding
Categories :
New Equipment
Description:
Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.
Features:
Strong, Adjustable Clutch for Long Life

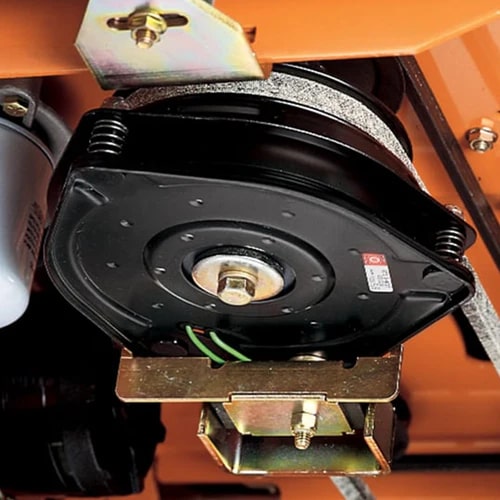

Ogura PTO Clutch Brake
- Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.
- All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).
- These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.
Specifications:
Dimensions
- Length: 79″
- Width (Chute Down): 73.5″
- Width (Chute in Transport Position): 62″
- Height (ROPS Folded): 47″
- Height (ROPS Up): 61″
- Weight: 952-956 lbs
General
- Total Fuel Capacity: 6.5 gallons
- Drive Tires: 24″ x 12″-12″
- Caster Tires: 13″ x 6.5″-6″

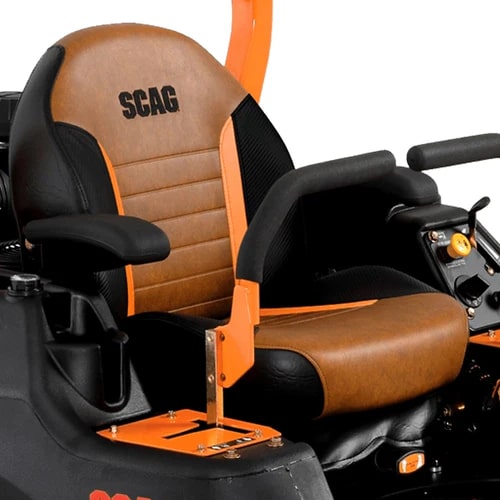

- Seat: Torsion-spring suspension seat
Drive System
- Drive System Type: Hydro-Gear ZT3400 Transaxle
- Pumps: ZT3400 Internal Pump: 12 cc
- Motors: Internal Motor: 16 cc
- Forward Ground Speed: 10 mph
- Reverse Ground Speed: 5 mph

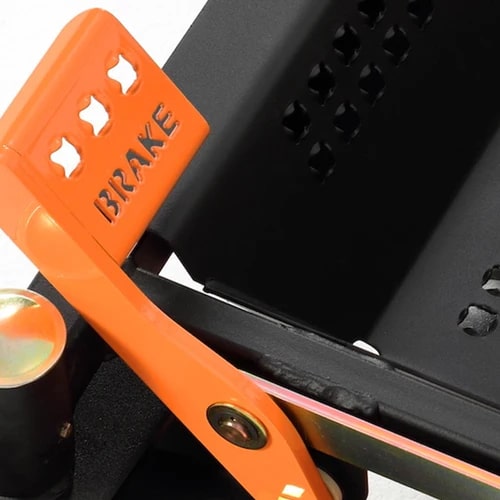

- Parking Brake: Foot-operated pedal
Cutting System
- Cutting Width: 61″
- Cutting Height: 1.5″ to 5″ in .25″ increments

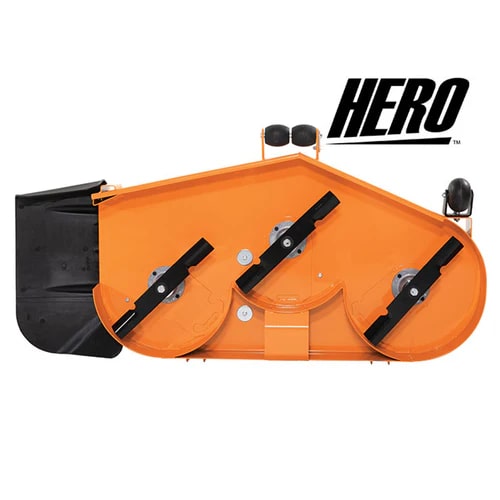

Deck
- Spindles: Aluminum housing with sealed ball bearings
- Construction: Dual-plate cutter deck constructed of 2 steel plates with a reinforcement plate at cutter deck spindles
- Deck Lift: Foot-operated pedal
- Type: Hero Cutter Deck
- Blade Engagement: Ogura GT2 (108 ft-lb) with adjustable air-gap for extended life
| Width | Weight | Height | Length |
|---|---|---|---|
| 956 Pounds | 0 Inch |
