Description:

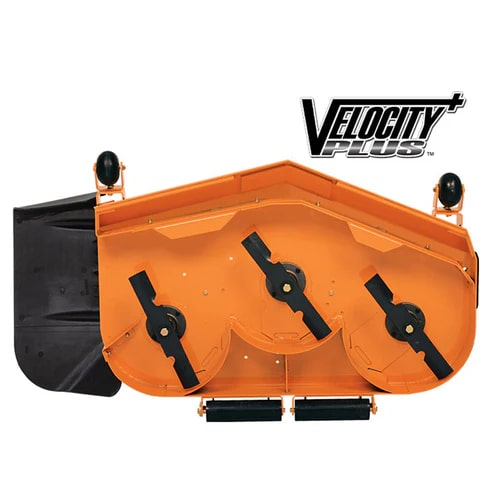

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Scag’s cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.

Scag’s Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals’ demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful, manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.

Features:

• Strength — Scag’s tough cutter-blade spindles and Tri-Plate construction ensure solid performance and long life. A replaceable trim-side wear pad protects deck from damage.
• Productivity — An extra-large discharge opening, paired with the Turbo Baffle, enhances discharge for even clipping dispersal.
• Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.

Specifications:

• Total Fuel Capacity: 13 gallons
• Drive Tires: 24" x 12"-12"
• Caster Tires: 13" x 6.5"-6"
• Seat: 4-point iso-mounted mid-back, mounted on operator-suspension platform

DRIVE SYSTEM:

• Drive System Type: Hydro-Gear ZT5400 Transaxle, Two-Speed
• Internal Pump: 16 cc
• Internal Motor: 21 cc
• Forward Ground Speed: 16 mph (high speed), 12 mph (low speed)
• Reverse Ground Speed: 8 mph (high speed), 5 mph (low speed)
• Parking Brake: Foot-operated pedal

CUTTING DECK:

• Cutting Width: 61"
• Deck Type: Velocity Plus™
• Cutting Height: 1.25" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Deck Construction: Tri-plate cutter deck constructed from 3 steel plates totaling nearly 1/2" thickness, reinforced at cutter deck spindles
• Spindles: Cast-iron housing with tapered roller bearings

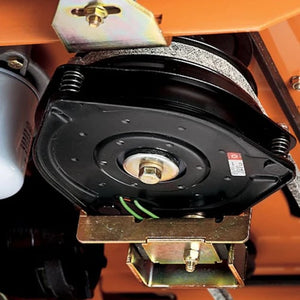

• Blade Engagement: Ogura GT5 (350 ft-lb), adjustable air-gap for extended life

PRODUCT DIMENSIONS:

• Length: 85.5"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height (ROPS Folded): 49.5"
• Height (ROPS up): 67"
• Weight: 1364-1392 lbs
