Description:

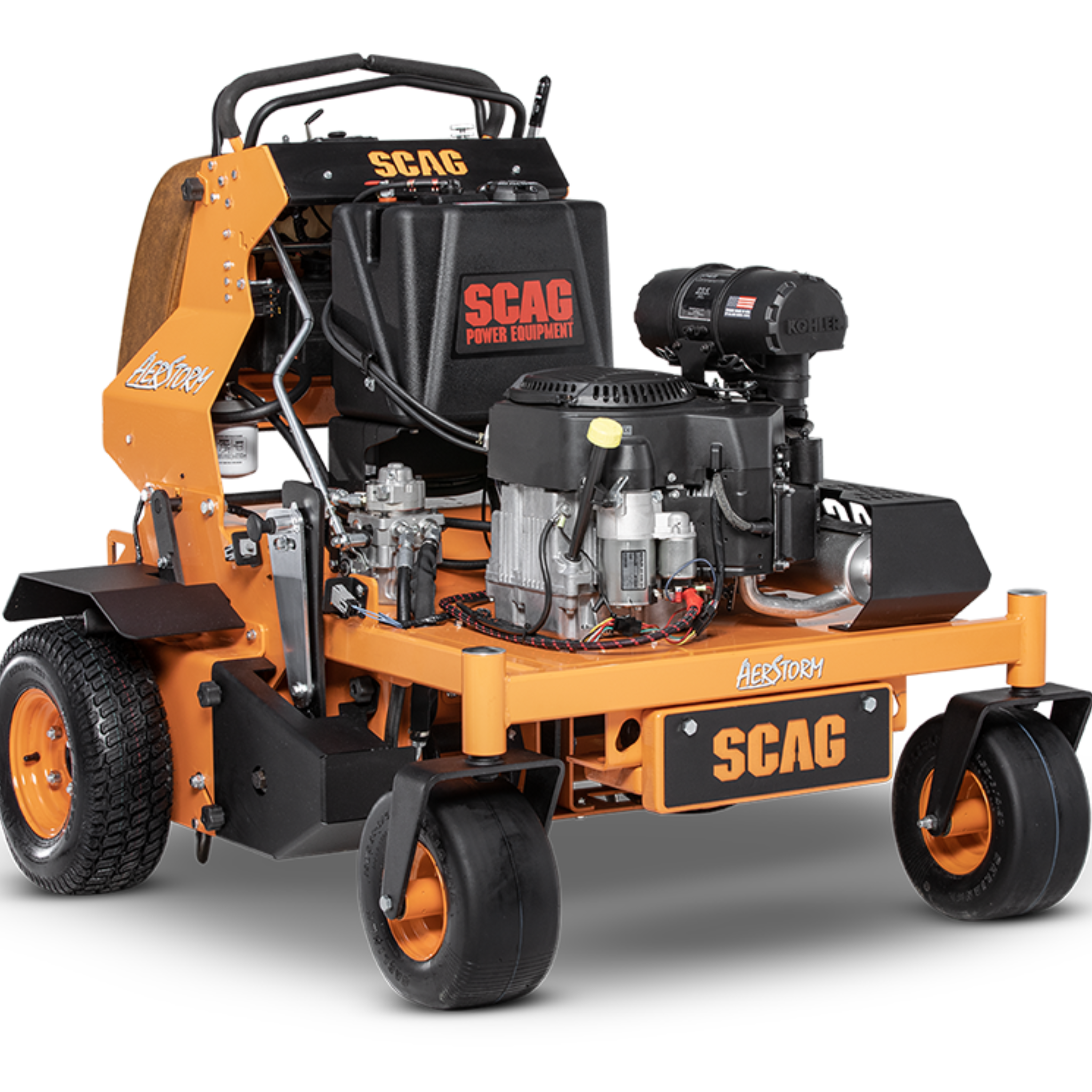

Aeration is vitally important for healthy turf, and it’s also an opportunity to expand your services. A new tool to tackle aeration with more efficiency, the stand-on AerStorm™ aerator allows you to get more done than ever before. Designed and engineered for long-lasting durability, improved productivity and all-day comfort, it’s time to take on your next challenge with the next generation of aeration.

Features:

• Quick and Simple Aeration
• Depth Adjustment and Engagement Achieve precise aerating depths effortlessly with a user-friendly depth selection pin. Adjust from 1” to 4” in 1/2” increments using the easy-grip rubber knob, catering to specific property needs. Hydraulic tine engagement, activated by a foot switch, enhances productivity and safety by keeping hands on the controls.
• Drive Control Levers Navigate with ease using ergonomic drive control levers, maximizing maneuverability and operational efficiency.
• Intuitive Instrument Panel Stay informed with a comprehensive instrument panel that provides clear visibility of operational metrics and status updates.
• Operator Platform Enjoy a comfortable, smooth ride with a spacious operator platform featuring suspension and a padded, bolstered cushion for extended comfort during prolonged use.
• Ease of Maintenance Minimize downtime with quick-access maintenance features including a removable cushion and lower panel for easy service access to the hydro tank and tines.
• Heavy-Duty Frame Built to last with a robust, heavy-duty frame ensuring dependable performance and longevity, ideal for sustained productivity.
• Powerful Engine Equipped with a 23 hp Kohler® Command Pro® engine, delivering substantial power, efficiency, and reliable performance for demanding applications.

Specification:

Engine Specification

• General Type: Heavy-duty industrial/commercial
• Brand: Kohler Command Pro
• Model: CV732
• Horsepower: 23.5 HP @ 3600 RPM
• Torque: 40.3 ft-lbs. (peak)
• Type: 4 cycle gas, twin-cylinder, air-cooled, OHV, vertical shaft engine
• Displacement: 747 cc (45.6 cubic inch)
• Cylinders: 2 cast-iron sleeves
• Governor: Mechanical type governor with variable speed control set at 3600 rpm (±100 rpm), idle set at 1800 rpm (±150 rpm)
• Air Intake Group: Large capacity 2-stage canister air filter
• Exhaust Group: Single exhaust canister muffler
• Fuel Pump Group: Integral fuel pump with inline fuel filter, internal fuel line vent; float feed; two barrel, adjustable idle, afterfire solenoid.
• Oil Pump Group: Full pressure lube, with full-flow filter, 2 quart oil capacity
• Starter/Electrical/Charging System: 12 volt "maintenance-free" sealed battery with alternator, solid state ignition with key start. 15 amp charging system, regulated.

Engine Deck

• Thickness: 1/4" steel
• Fuel Tank: 5.5 gallon (20.8 liters) tank with molded-in cup holder

Drive System

• Type: Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel
• Hydro Pumps: Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine; one cooling fan
• Drive Wheel Motors: Two Parker TG 14.5 cu. inch cast-iron high torque wheel motors
• Hydro Fluid Cooling Group: 3.0 qt. capacity cooling reservoir; uses SAE 20W50 fluid and 10 micron filter
• Steering/Travel Control: Twin lever steering control with individual control to each wheel
• Dump Valves: Allows for movement without engine running
• Axles: 1.25" heavy-duty, straight motor shafts
• Wire Harness: 14 and 16 gauge wire
• Safety Group: Footplate-actuated operator presence system interlock to engine kill

Product Specification

• Type: Plug-style aeration. Mid/under-belly mount.
• Aerating Width: 30"
• Aerating Depth/Adjustment: 1” to 4” in 1/2” increments. Simple and intuitive depth selection pin with easy-grip rubber knob.
• Tines: 48 self-cleaning, replaceable, steel coring tines
• Tine Activation & Pressure: Hydraulic tine engagement (raise and lower) via a foot-activated switch. Tine activation switch on the instrument panel prevents accidental engagement/disengagement while working or transporting. Adjustable hydraulic down-pressure helps to penetrate even the hardest and driest soils to ensure effective aeration performance in all conditions.

Dimensions

• Length: 68.6"
• Width: 49.8"
• Height: 51.2"
