DESCRIPTION

Elevate your mowing experience with the 42" Hero Cutter Deck, driven by a robust 21 HP Kawasaki® FR651V V-twin engine. Crafted for exceptional performance and durability, this mower boasts a heavy-duty construction and an array of innovative features.

Features:

• Proven Transaxles: The ZT drive systems' dual hydro transaxles ensure smooth power delivery to the drive wheels, offering reliable performance and speeds of up to 7 MPH. For added reliability, the 48" model comes equipped with Tuff Torq transaxles.
• Deep, Fabricated, and Welded Cutter Decks: Designed for heavy-duty use, the Hero Cutter Deck guarantees an outstanding quality-of-cut, effortlessly handling large grass volumes at higher speeds.
• Ogura PTO Clutch Brake: Delivers excellent starting and stopping power for the cutter deck, featuring an adjustable air gap for prolonged lifespan.
• Easy Foot-Pedal Deck Lift: The spring-assisted foot-pedal cutter-deck lift mechanism facilitates smooth and effortless raising and lowering of the cutter deck.
• Contoured, Bolstered, High-Back Seat: Enjoy ultimate comfort during extended mowing sessions with the ultra-comfortable and adjustable seat, complete with armrests for added support.
• Low-Maintenance Mower Design: With fewer grease points, this mower offers enhanced operator convenience and ease-of-ownership, minimizing downtime.
• High-Strength Steel Frame: Built to last, the tubular-steel main frame ensures unmatched strength and longevity, guaranteeing years of dependable service.
• Powerful and Efficient Engine Options: Choose between the reliable Kawasaki® FR or Kohler® 7000 Series engines, providing up to 24 HP of dependable power.

Specifications:

• Total Fuel Capacity: 3.5 gallons (36" and 42"); 5.5 gallons (48", 52" and 61")
• Drive Tires: Various sizes depending on the model
• Caster Tires: Various sizes depending on the model
• Seat: Padded with armrests, adjustable forward and back (tools required); armrests not available on 36" and 42" models
• Drive System Type: Hydro-Gear ZT2800 Transaxle (36", 42" and 52"); Tuff Torq TZ450 Transaxle (48"); Hydro-Gear ZT3100 Transaxle (61")
• Pumps: Internal Pump: 10 cc; Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph; Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 42", 48", 52" and 61"
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) - (36", 42", 48" and 52"); Ogura GT2 (108 ft lb) - (61"); Adjustable air-gap for extended life

Dimensions

• Length: 68.5"
• Width (chute down): 54.5"
• Width (chute in transport position): 43"
• Height: 41"
• Weight: 595 lb

Accessories:

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
• Cutter Deck Transport Latch

Description:

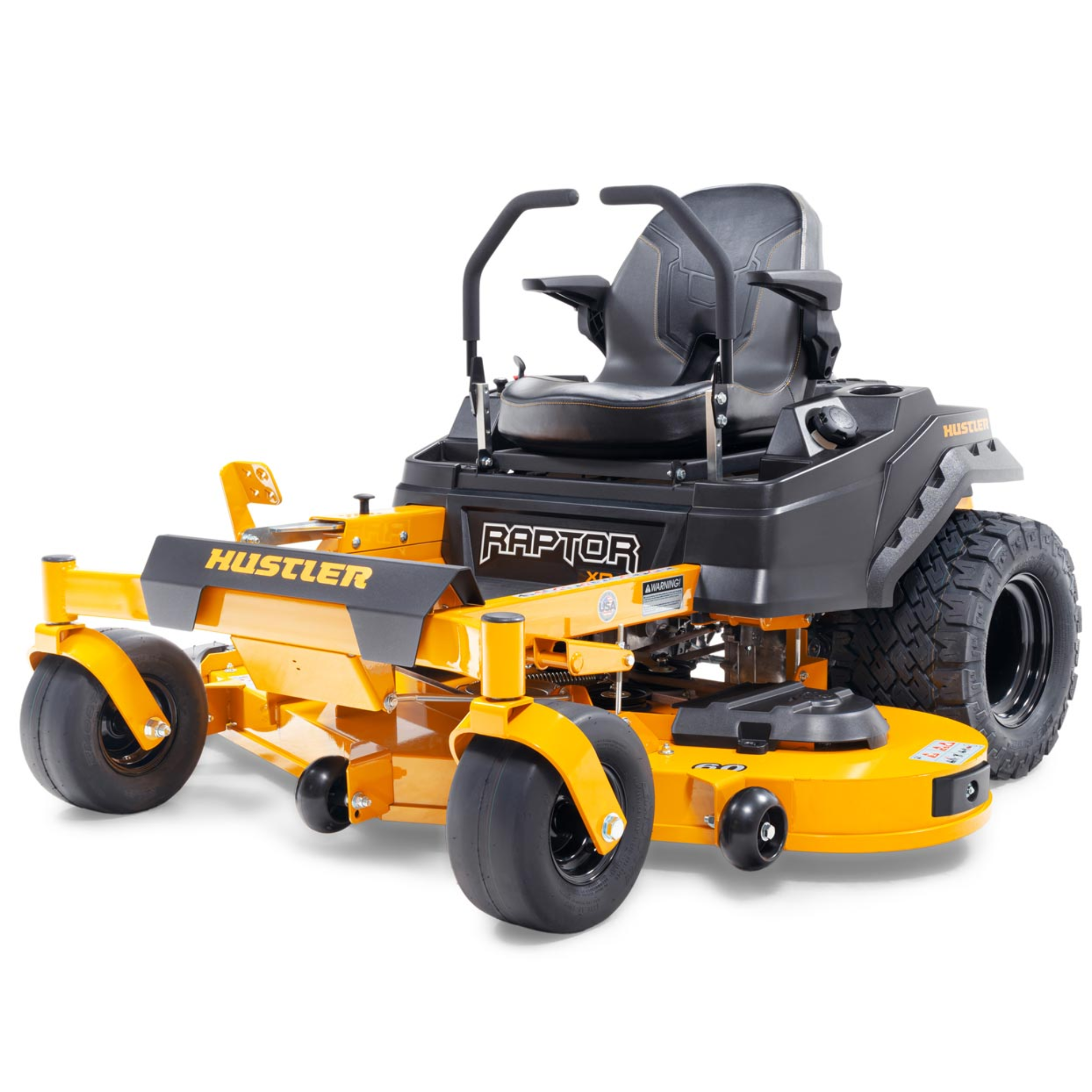

The Raptor XDX is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.

 Key Features

• 21.5hp, 23hp & 24hp Kawasaki Engines
• 48", 54" & 60” decks
• 8mph mowing speed
• 3-year / 300 hour limited warranty
•  Commercial Grade Deck
• Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
•  Extra High-back Seat
• A premium extra high-back seat with armrests.
•  22" BigBite™ Tires
• More aggressive tire to handle tough jobs.

Features:

• Welded Steel Deck: Fabricated from welded steel, enhancing durability and extending the mower's lifespan.
• Wider Stance: Designed to offer ample room, contributing to operator comfort during operation.
• SmoothTrak Steering: Precision control system enabling effortless trimming and maneuvering around obstacles.
• Bolstered Seat: Provides a comfortable ride with armrests and airflow to the back, ensuring operator comfort.
• Rubber Floor Mat: Standard on all Raptor models, minimizes vibration on the operator's feet, enhancing comfort during prolonged use.
• Fabricated Frame: Features a continuous one-piece 1½ inch by 3 inch welded tubular frame for structural integrity and robustness.
• Foot-Operated Deck Lift: Easily adjust the deck height between 1.5" - 4.5" with foot operation, facilitating customization during mowing.
• Easy to Service: Maintenance is simplified with features like the flip-up seat pan, removable floor pan, and vented pulley covers, ensuring easy access for servicing.
• Exclusive BigBite Rear Tires: Developed in collaboration with the tire manufacturer, offering enhanced traction and performance.
• Kawasaki® Power: Equipped with a V-Twin Kawasaki® Engine, providing reliable power for efficient operation.

Specification:

• Cutting Width: 60"
• Engine: Kawasaki FR730
• Engine Horsepower: 24 HP
• Transmission: Hydro-Gear ZT-3100® Dual Hydrostatic
• Fuel Capacity: 3 gallons
• Ground Speed (FWD): Up to 8 mph
• Cutting Height: 1.5" to 4.5"
• Front Tire Size: 13 x 6.5 inches
• Drive Tire Size: 22 x 11-10 BigBite™
• Warranty: 3 Year Warranty (Residential) or 1 Year Warranty (Commercial), 300 hour limit

Engine Details:

• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Limited

Transmission Details:

• Type: Dual Hydrostatic
• Technology: Hydro-Gear ZT-3100®
• Warranty: 3 Year Limited

Additional Features:

• Steering: Integrated with steering levers
• Cutting Width: 60"
• Seat: Bolstered extra high-back seat with armrests and built-in lumbar support
• Front Tire Size: 13 x 6.5 inches
• Drive Tire Size: 22 x 11-10 BigBite™
• Weight: 710 lbs
• Height: 43.7 inches
• Length: 71.1 inches
• Width w/ Chute Up: 62.2 inches
• Tire-to-Tire Width: 48.6 inches
• Productivity (Acres per Hour): 3.88

Warranty:

• Residential: 3 Year/300 hour
• Commercial: 1 Year/300 hour

Bagging Systems:

• 60" Model: Powered 2-bag, 7.2 bushel capacity
• Dimensions: 92.3" (Width) x 69.2" (Height)

Description:

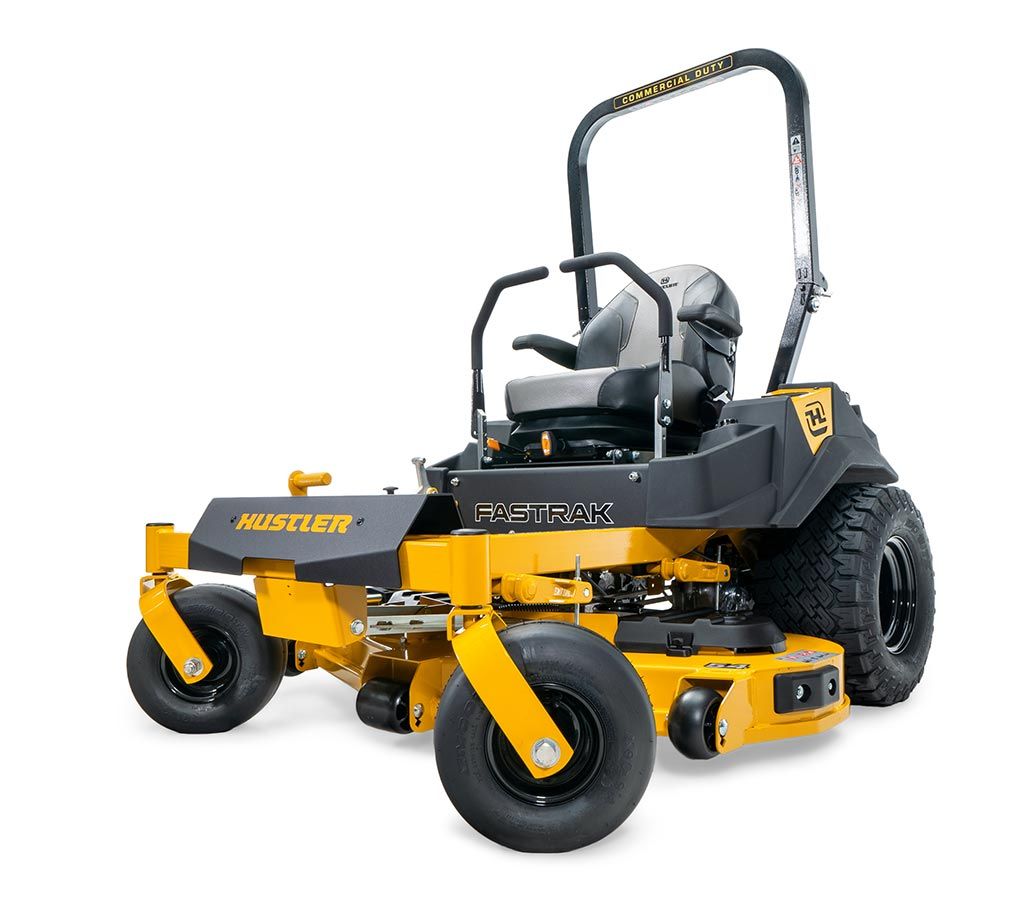

A commercial grade machine at the right price, the FasTrak series ticks a lot of boxes for business owners who demand more from their zero turn mower.

Boasting a long 4 year commercial warranty, 48" fabricated steel deck, commercial grade Kawasaki V-Twin engine and strong Hydro-Gear ZT-3200 transmissions, the FasTrak 48 offers plenty of bang for your bucks.

Safety is covered with standard roll over protection bar, while the seating position has been designed with operator comfort in mind.

The high back suspension seat with arm rests and well bolstered back cushion will have you stepping off fresh at the end of a long day!

The relatively small footprint for a commercial mower adds additional flexibility and access advantages compared to a larger machine, making this model suited to a wide variety of commercial mowing applications.

The FasTrak 48 will comfortable fit on a standard 7" x 5" trailer, for easy transportation and site access.

Specification:

Cutting Equipment & Features:

• Deck Width & Construction: 48 Inch 10 Gauge Fabricated Cutting Deck
• Blades & PTO: 3 Blades with electric PTO blade engagement
• Spindles: Aluminum with 11 gauge spindle mounts, 1" shaft, and double lip sealed ball bearings
• Cutting Height & Adjustment: 1.5" - 4.5" cutting range with foot-assisted deck height adjustment
• Optional Extras: Optional Mulch Kit, Optional Catcher Kit

Productivity & Capability:

• Ground Speed: 16 Km/h Ground Speed
• Acres per hour: 3.1 Acres per hour (Rating based on 80% efficiency to allow for real-world mowing conditions)
• Fuel Tank Capacity: 32 L
• Slope Capability: 15 Degrees

Power & Drive Train:

• Engine Type & Specifications: 22HP Kawasaki FT691V Engine. Air cooled. 726cc.
• Engine Warranty: 3 Year Engine Warranty
• Transmission Type & Specifications: Dual Hydro Gear ZT3200 Hydro Transmissions

Build & Chassis:

• Country of Manufacture: Made in the USA
• Chassis Construction: 1.5" x 3" Welded Tubular Steel Frame
• Roll Over Protection: Standard Roll Over Protection Bar
• Rear Wheels & Tires: 23" x 9.5" Rear Tires
• Front Wheels, Tires & Castors: 13" x 6.5" Front Tires

Comfort & Convenience:

• Seat Type: High Back Suspension Seat with Armrests
• Console Features: Cup Holder, Park Brake (Automatic Park Brake)
• Maintenance Access: Open rear design for easy engine maintenance
• Tow Hitch: Optional Tow Hitch

Dimensions:

• Minimum Trailer Size: 5 ft wide, 7 ft Long
• Length: 1948 mm
• Width (Chute up): 1270 mm (Chute up)
• Height (ROPS up & down): 1745 mm (ROPS up). 1156 mm (ROPS down)
• Weight: 413 kg

Description:

The new X-Ride is equipped with Custom Ride Technology, an isolated operator suspension platform designed to deliver a comfortable ride for the operator even while on rough terrain. The platform absorbs up to 4 inches of travel and has 5 levels of adjustability for the operator to find their comfort preference all while maintaining the stability on the mower.

Specification:

• Stock Number: 944074
• Make: Hustler
• Series: X-Ride
• Model: X-Ride 60"
• Deck Size: 60"
• Horsepower: 34.5
• Main Category: Zero-Turn Mowers
• Deal: Hustler
• All Mowers: All Mowers
• Commercial or Residential: Commercial

Description:

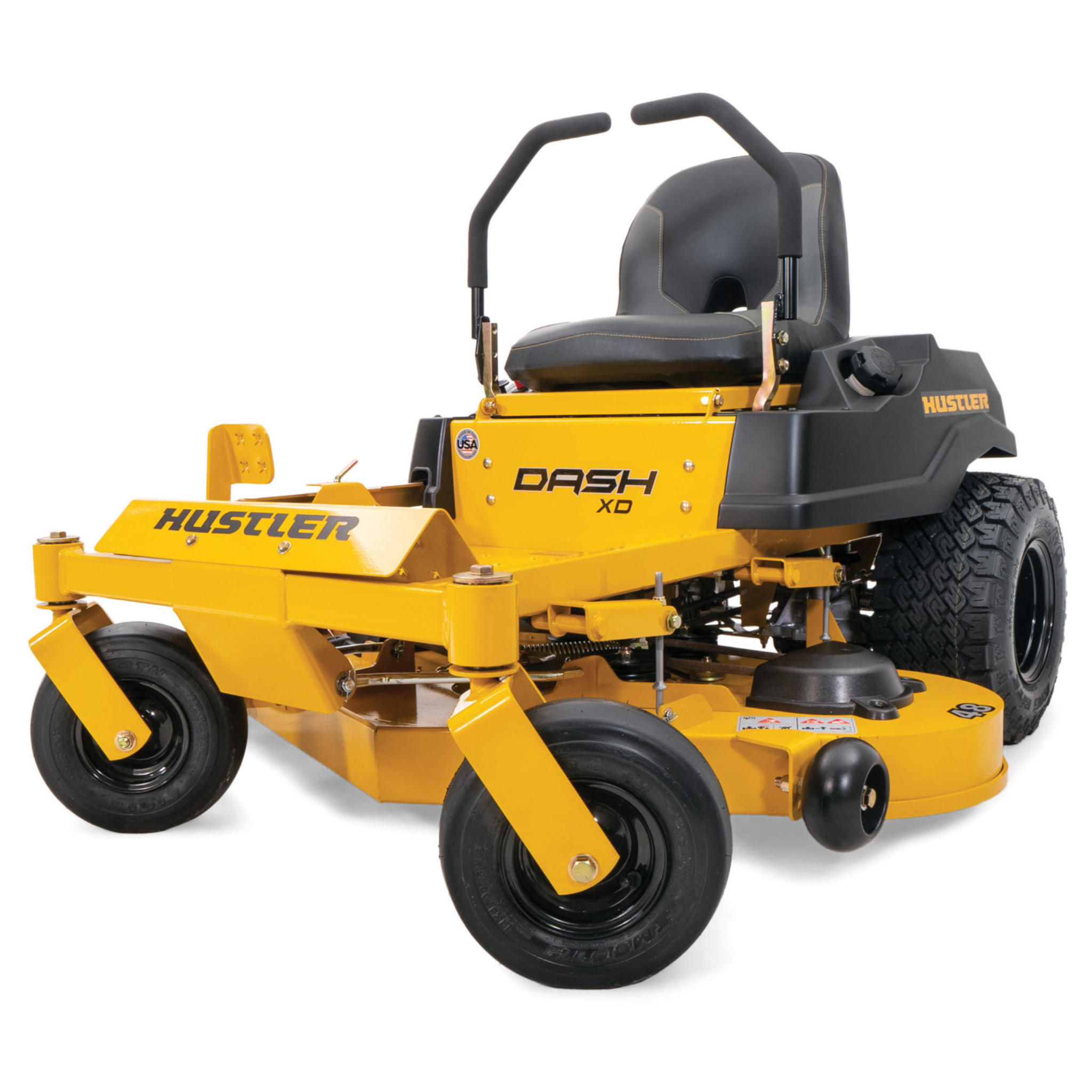

The Dash XD is the big brother of the Dash. The upgrades include more deck sizes, a more bolstered seat, more horsepower with a Kawasaki engine, and larger BigBite™ rear tires. At this price point, the Dash XD’s beefy construction clearly separates it from other brands at this price point. This is a great replacement for an inefficient lawn tractor.

Features:

• 15hp & 18hp Kawasaki Engine
• 34", 42" & 48” decks
• 6mph mowing speed
• 2-year / 200 hour residential warranty
• Standard Engine Guard
• Stylish and strong engine protection comes standard.
• Premium Seat
• Bolstered with built-in lumbar support.
• 18" BigBite™ Rear Tires

Specification:

Engine:

• Manufacturer: Kawasaki FR541
• Horsepower: 15
• Displacement: 603cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Transmission:

• Type: Dual Hydrostatic
• Manufacturer: Hydro-Gear ZT-1800

Fuel Capacity: 2 Gallons

Ground Speed (Forward): Up to 6 mph

Deck:

• Cutting Width: 34"
• Cutting Height: 1.5" to 4.5"
• Deck Depth: 4.1"
• Deck Lift: Foot Operated
• Number of Blades: 2
• Blade Length: 16.75"
• Blade Tip Speed: 17,500
• Spindles: Aluminum with 3/4" shaft and triple protection sealed ball bearings
• Deck Engagement: Electric PTO Clutch
• Deck Material: 11 Gauge Steel
• Spindle Mounts: Reinforced 14 Gauge Steel
• Impact Trim Area: 1/4" x 3/4" Steel Bar

Construction:

• Frame: 1" x 2" Steel Tubing
• Front Axle: Fabricated with Sealed Ball Bearings
• Front Caster Wheel: Commercial Duty Steel Roller Bearings
• Front Caster Fork: Fabricated 1/4" Steel

General:

• Seat: Premium Bolstered Seat with Built-In Lumbar Support
• Cup Holder: Yes

Dimensions:

• Front Tire: 11x4
• Drive Tire: 18x6-8 BigBite
• Weight: 455 lbs
• Height: 40"
• Length: 65.5"
• Width with Chute Up: 37.5"
• Tire-To-Tire Width: 35"
• Acres Per Hour: 1.65

Warranty:

• Residential: 2 Year or 200 Hours. Second year covers parts only.

Description:

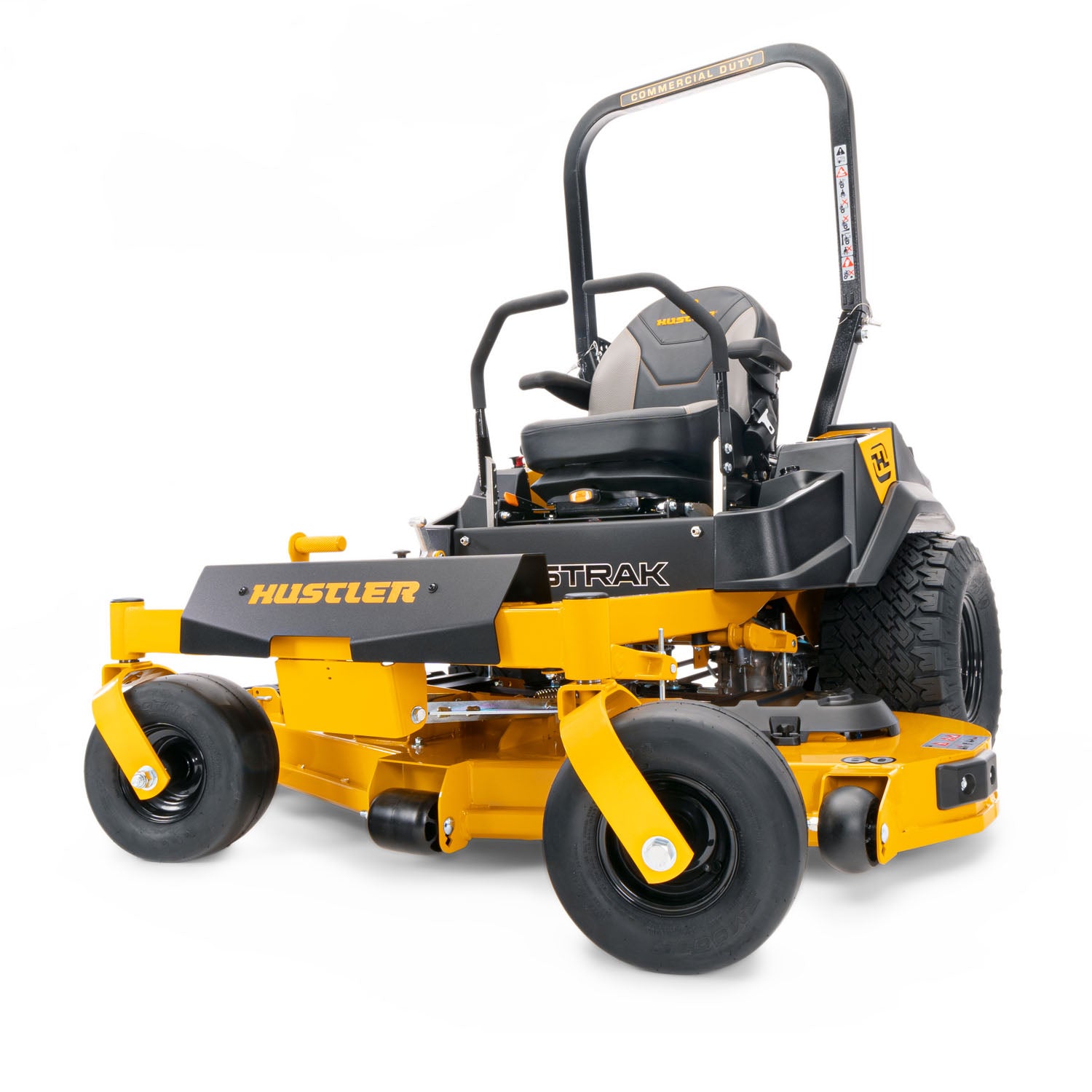

The FasTrak is the perfect mower to start your lawncare business, grow your lawncare business or mow residential large acreages like at a farm, ranch or place of business. The new additions include two USB ports, dual fuel tanks, rubber floor mat, frame tie-downs and cast deck hangers.

Specifications:

• Engine Manufacturer: Kawasaki FT691
• Engine Horsepower: 22
• Transmission: Hydro-Gear ZT-3200™
• Fuel Capacity: 8.5 gallons
• Ground Speed (Forward): Up to 10 mph
• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Front Tire: 13 x 6.5-6
• Drive Tire: 23 x 11-10 BigBite™
• Warranty: 4 years or 750 hours

Description:

The FasTrak is the perfect mower to start your lawn care business, grow your lawn care business or mow residential large acreages like at a farm, ranch or place of business. The new additions include two USB ports, dual fuel tanks, a rubber floor mat, frame tie-downs, and cast deck hangers.

Features:

• Cast Deck Hangers: Engineered to enhance durability, ensuring prolonged usage and reliability.
• SmoothTrak™ Steering: Precision control system designed to facilitate trimming and maneuvering around obstacles with ease.
• Easy Serviceability: Maintenance is simplified with features like the flip-up seat pan, removable floor pan, and toolless removable pulley covers, making upkeep tasks straightforward and hassle-free.
• Magnetic Top Pin Deck Lift: Easily adjust the deck height between 1.5” to 4.5” using your foot, providing convenience and efficiency during operation.
• Welded Steel Deck: Constructed from durable 10-gauge welded fabricated steel, delivering robust performance and resilience to wear and tear.
• Dual Roto-Molded Fuel Tanks: Equipped with dual mechanical fuel gauges and boasting an 8.5-gallon fuel capacity, ensuring extended operation without frequent refueling.

Specifications:

• Cutting Width: 60"
• Engine: Kawasaki FT730
• Engine Horsepower: 24 HP
• Transmission: Hydro-Gear ZT-3200™ Dual Hydrostatic
• Fuel Capacity: 8.5 gallons
• Ground Speed (FWD): Up to 10 mph
• Cutting Height: 1.5" to 4.5"
• Front Tire Size: 13 x 6.5-6 inches
• Drive Tire Size: 23 x 11-10 BigBite™
• Warranty: 4 years or 750 hours

Engine Details:

• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Limited

Transmission Details:

• Type: Dual Hydrostatic
• Technology: Hydro-Gear ZT-3200™
• Warranty: 3 Year Limited

Additional Features:

• Steering: Integrated with steering levers
• Seat: High-Back Suspension Seat
• Bagging System: 2-bag (Powered), 7.2 bushel capacity
• Bac-Vac: Powered, 8 bushel capacity

Dimensions:

• Weight: 944 lbs
• Height: 45.5" (ROPS down), 68.7" (ROPS up)
• Length: 76.7"
• Width w/ Chute Up: 61.1"
• Tire-to-Tire Width: 51.5"
• Productivity (Acres per Hour): 4.84

Bagging Systems Dimensions:

• 2-bag Capacity: 7.2 bushels
• Width: 98"
• Height: 69"

Bac-Vac Dimensions:

• Powered
• Capacity: 8 bushels
• Width: 88.75"
• Height: 69"

Description:

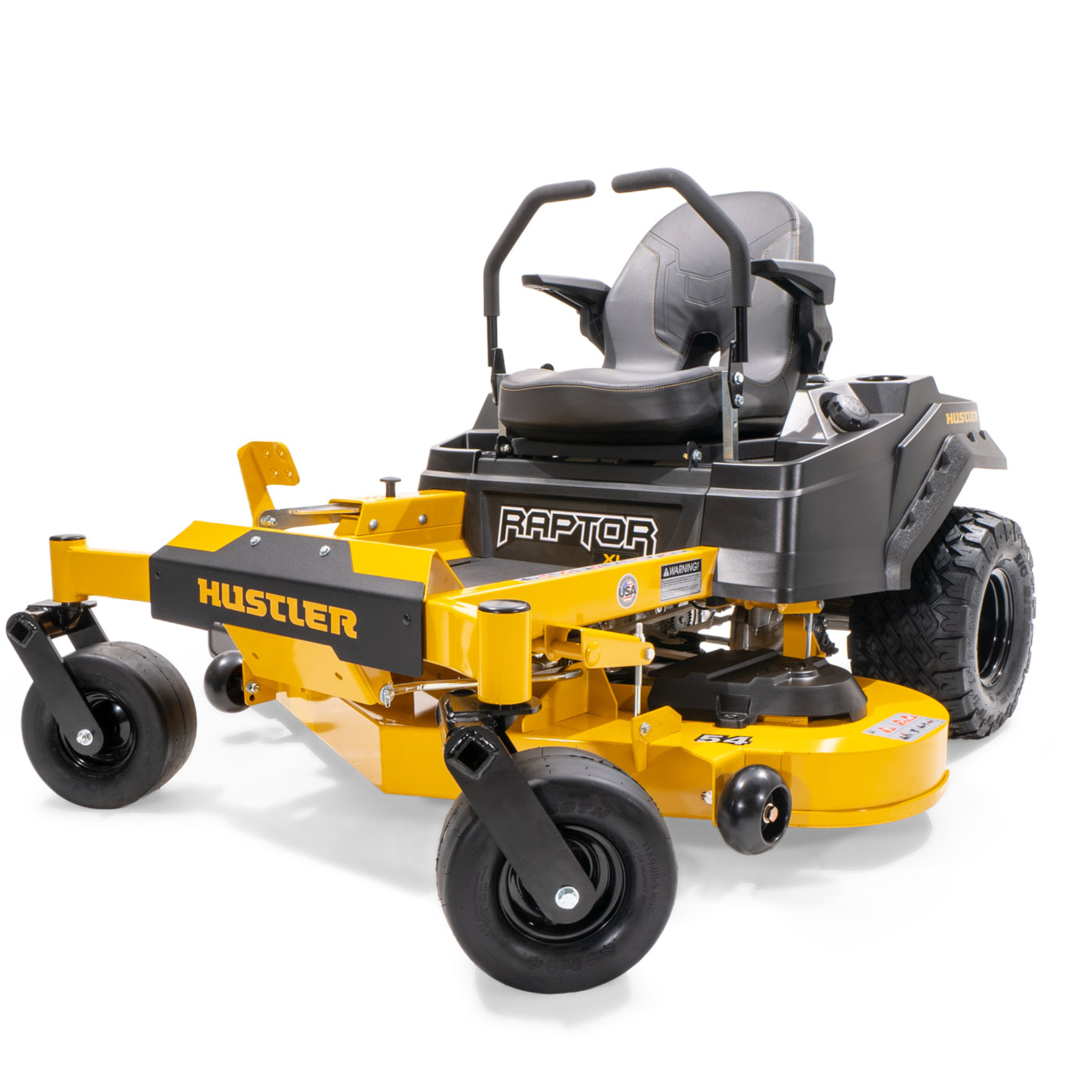

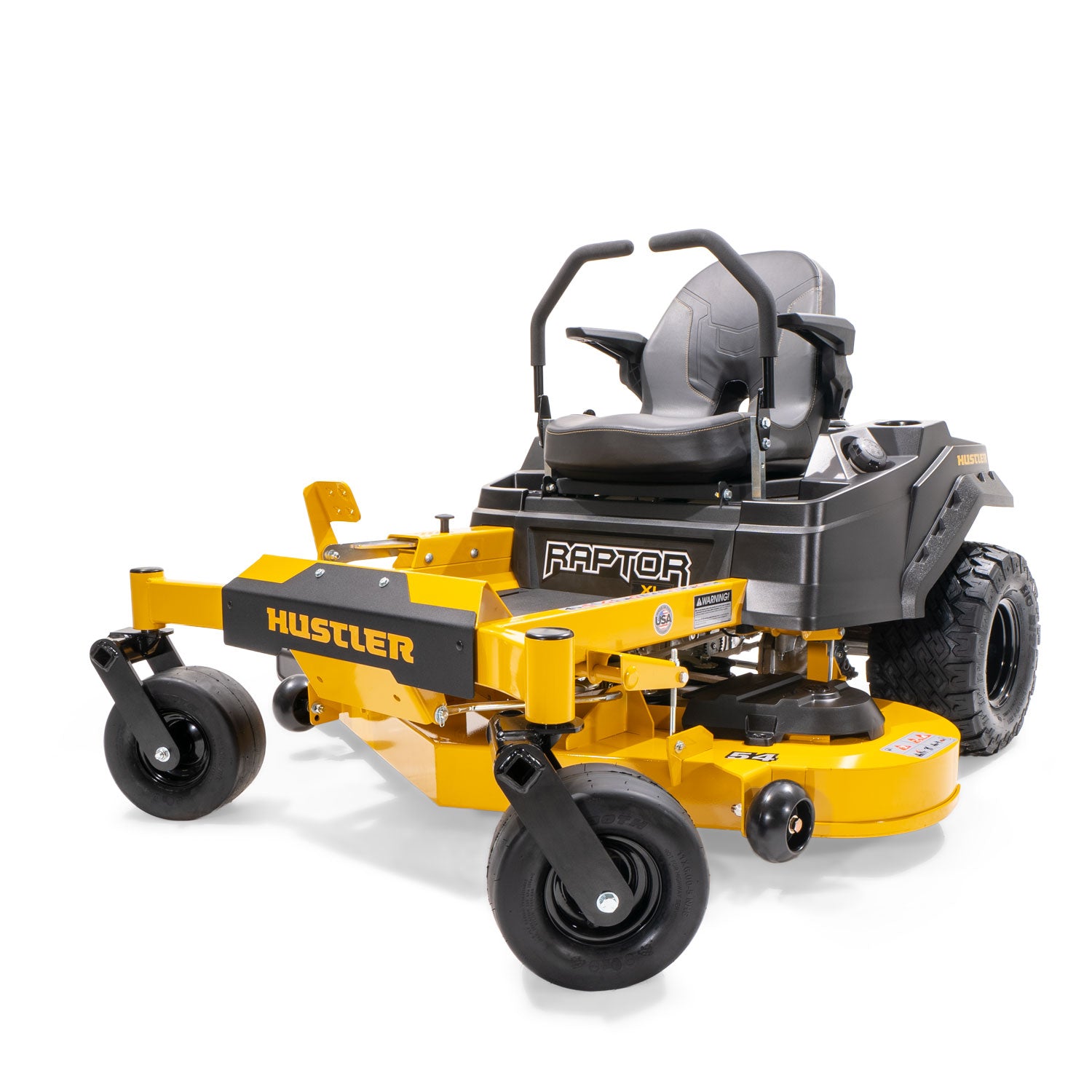

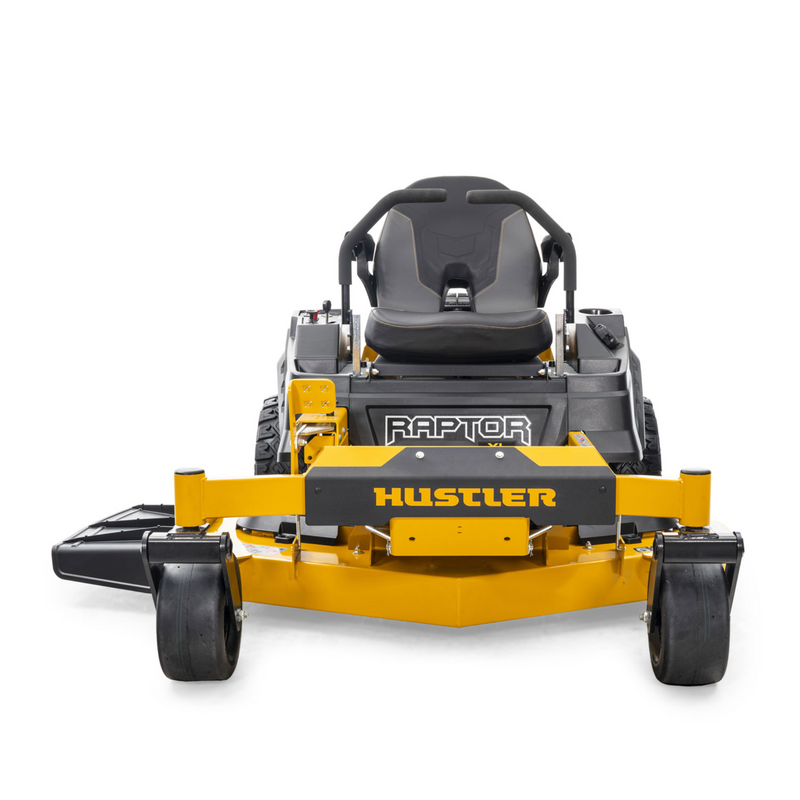

Hustler Raptor X model 939702 features a powerful Kawasaki FR651 an updated 54 IN Open Deck and Dual Hydrostatic HydroGear EZT transmission. Featuring a welded-steel deck, fabricated frame and Hustler’s exclusive SmoothTrak steering, this model delivers the best an exceptional value and wide cutting performance.

The legendary Raptor X packs all the performance and reliability Hustler is known for into a simple and durable design. Hustler Turf engineers their mowers to be maintenance and service friendly for the everyday homeowner. From the frame to the deck to our trademark steering, the Raptor X delivers a professional grade cut-quality for a perfectly manicured lawn. Husltler Turf put thousands of hours of R&D and testing into the Raptor Series, which is why it’s backed by an industry leading 3yr / 300hr warranty.

The Mower Shop strongly endorses the Raptor with Kawasaki engine and 54 IN cutting for homeowners with up to 1 acre of mowing.

Features:

• Kawasaki FR651 engine
• 54 IN Open Deck mowing
• Dual Hydrostatic HydroGear EZT transmission reaches speeds up to 6.5 mph
• Smooth operation and patented Automatic park brake
• Perfect for up to 1 acre of mowing

Specifications:

Engine:

• Manufacturer: Kawasaki FR651
• Horsepower: 21.5
• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Transmission:

• Type: Dual Hydrostatic
• Manufacturer: Hydro-Gear ZT-2200

Fuel Capacity: 3 Gallons

Ground Speed (Forward): Up to 7 mph

Deck:

• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Deck Depth: 4.5"
• Deck Lift: Foot Operated
• Number of Blades: 3
• Blade Length: 18.50"
• Blade Tip Speed: 18,600
• Spindles: Aluminum with 1" shaft and double lip sealed ball bearings
• Deck Engagement: Ogura GT1.5
• Deck Material: Fabricated 11 Gauge Steel
• Spindle Mounts: Reinforced 7 Gauge Steel
• Impact Trim Area: 1/4" x 1" Steel Bar

Construction:

• Frame: 1.50" x 3" Steel Tubing
• Front Axle: Fabricated with Sealed Ball Bearings
• Front Caster Wheel: Sealed Ball Bearings
• Front Caster Fork: Fabricated 1/4" Steel

General:

• Seat: Premium Bolstered Mid-Back Seat with Armrests and Built-In Lumbar Support
• Cup Holder: Yes

Dimensions:

• Front Tire: 11x6
• Drive Tire: 18x10.5-8 BigBite
• Weight: 564 lbs
• Height: 40.8"
• Length: 70.6"
• Width with Chute Up: 58.6"
• Tire-To-Tire Width: 46.5"
• Acres Per Hour: 3.01

Warranty:

• Residential: 3 Year or 300 Hours

Description:

The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features:

• Welded Steel Deck
• Welded fabricated steel deck helps add durability and can extend the mower's life.
• Wider Stance
• Designed to provide ample room adding to the comfort for the operator.
• SmoothTrak Steering
• Precision control designed to help trim and maneuver easily around obstacles.
• Bolstered Seat
• Helps provide a comfortable ride with armrests and airflow to the back.
• Rubber Floor Mat
• Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
• Fabricated Frame
• Continuous one-piece 1½ inch by 3 inch welded tubular frame.
• Foot-Operated Deck Lift
• Easily adjust the deck height between 1.5" - 4.5".
• Easy to Service
• Flip-up seat pan, removable floor pan, vented pulley covers.
• Exclusive BigBite Rear Tires
• We worked directly with the tire manufacturer on this design.
• Kawasaki® Power
• Powered by a V-Twin Kawasaki® Engine.

Specification:

Engine Specs:

• Manufacturer: Kawasaki FR691
• Horsepower: 23
• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Drive System:

• Type: Dual Hydrostatic
• Transmission: Hydro-Gear ZT-2800
• Fuel Capacity: 3 Gallons
• Ground Speed (FWD): Up to 7.5 mph
• Parking Brake: Patented Automatic

Deck:

• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Deck Depth: 4.5"
• Deck Lift: Foot Operated
• Number of Blades: 3
• Blade Length: 18.50"
• Blade Tip Speed: 18,800
• Spindles: Aluminum with 1" shaft and double lip sealed ball bearings
• Deck Engagement: Ogura GT1.5
• Deck Material: Fabricated 11 Gauge Steel
• Spindle Mounts: Reinforced 7 Gauge Steel
• Impact Trim Area: 3/8" x 1" Steel Bar

Construction:

• Frame: 1.50" x 3" Steel Tubing
• Front Axle: Fabricated with Sealed Ball Bearings
• Front Caster Wheel: Sealed Ball Bearings
• Front Caster Fork: Fabricated 3/8" Steel

General:

• Seat: Premium Bolstered High-Back Seat with Armrests and Built-In Lumbar Support
• Cup Holder: Yes

Dimensions:

• Front Tire: 13x6.5
• Drive Tire: 20x12-12 BigBite
• Weight: 653 lbs
• Height: 43.7"
• Length: 71.1"
• Width with Chute Up: 58.5"
• Tire-To-Tire Width: 48.6"
• Acres Per Hour: 3.27

Warranty:

• Residential: 3 Year or 300 Hours

Description:

The legendary Raptor® X packs all the performance and reliability Hustler is known for into a simple and durable design. We engineer our mowers to be maintenance and service friendly for the everyday homeowner. From the frame to the deck to our trademark steering, the Raptor X delivers excellent cut quality for a well manicured lawn. We’ve put thousands of hours of R&D and testing into the Raptor Series, which is why it’s backed by a 3yr / 300hr limited warranty.

Features:

• 18hp & 21.5hp Kawasaki Engines
• 42” & 54” decks
• Up to 7 mph mowing speed
• 3-year / 300 hour limited warranty

Specifications:

• Engine Manufacturer: Kawasaki FR600
• Engine Horsepower: 18 HP
• Transmission: Hydro-Gear ZT-2200
• Fuel Capacity: 3 gallons
• Ground Speed (FWD): Up to 7 mph
• Cutting Width: 42"
• Cutting Height: 1.5" to 4.5"
• Front Tire: 11 X 5
• Drive Tire: 18 X 8.5-8 BigBite™
• Warranty: 3 Year/300 hour residential

Description

Hustler Raptor XDX 54″ Zero Turn Mower – 939835

The Hustler Raptor XDX 54" is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry-leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.

• Commercial Grade Deck: Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
• Wider Stance: Additional operator platform width provides more room and comfort for the operator
• SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
• Premium Seat: A premium extra high-back seat with armrests.
• Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
• Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
• Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers from other brands.
• Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
• Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
• Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.

Specification:

• Engine Manufacturer: Kawasaki FR691
• Engine Horsepower: 23
• Transmission: Hydro-Gear ZT-3100™
• Fuel Capacity: 3 gal.
• Ground Speed (FWD): Up to 8 mph
• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Deck Depth: 5"
• Deck Lift: Foot Operated
• Number of Blades: 3
• Blade Tip Speed: 18,900
• Spindles: Aluminum with 1" shaft and sealed ball bearings
• Deck Engagement: Electric PTO Clutch
• Deck Material: Fabricated 10 gauge
• Spindle Mounts: Reinforced 11 gauge
• IMPACT Trim Area: 11 gauge formed channel with rolled edge
• Front Tire: 13 x 6.5
• Drive Tire: 23 x 11-10 BigBite™
• Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
• Engine Warranty: 3 Year Warranty
• Frame: 1.50" X 3" steel tubing
• Front Axle: Fabricated with sealed ball bearings
• Front Caster Wheel: Tapered roller bearings - grease-able
• Front Caster Fork: Fabricated 3/8" steel
• Weight (lbs): 678

Description:

The Raptor XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and flex forks for a smoother ride. Also, there is an additional horsepower option with a 23hp Kawasaki FR Engine. More comfort and more power backed by an industry leading 3yr / 300hr warranty.

Key Features

• 21.5hp, 23hp Kawasaki Engines
• 42” & 54” decks
• 7mph mowing speed
• 3-year / 300 hour limited warranty
• FlexForks®
• Standard on the XL, these flexing front forks cushion the ride for a more comfortable mowing experience.
• Premium Seat
• Compared to Raptor X seat, the XL seat features a higher back and added padding
• Premium Engine
• The V-Twin Kawasaki® engine is the highest rated residential engine available.

Key Specs

• Engine Manufacturer: Kawasaki FR691
• Engine Horsepower: 23
• Transmission: Hydro-Gear ZT-2200
• Fuel Capacity: 3 Gallons
• Ground Speed (FWD): Up to 7 mph
• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Front Tire: 11x6
• Drive Tire: 18x10.5-8 BigBite
• Warranty: 3 Year / 300 Hours Residential

Specifications:

• Engine: 23 HP Kawasaki
• Transmission: Dual Hydro-Gear ZT-2200
• Fuel Capacity: 3 Gal.
• Ground Speed: Up to 7mph
• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Front Tires: 11 X 6
• Drive Tires: 18 X 10.5-8 BIGBITE
• Width (Chute Up): 58.6"
• Parking Brake: Patented Automatic
• Deck Depth: 4.5"
• Deck Lift: Foot Operated
• Deck Spindles: Aluminum with 1" shaft and double lip sealed ball bearings
• Deck Engagement: Electric PTO Clutch, Ogura GT1.5
• Deck Material: 11 gauge steel
• Frame: 1.50" X 3" steel tubing
• Front Axle: Fabricated with sealed ball bearings
• Seat: Premium bolstered high-back seat with armrests and built-in lumbar support
• Cup Holder: Yes
• Warranty: 3 Year/ 300 Hour Res. Engine- 3 Year Warranty
• Weight: 594 LBS

Description:

The Raptor® XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and Flex Forks® for a smoother ride. Also, there is an option for additional horsepower with a 23hp Kawasaki® FR Engine. More comfort and more power backed by a 3yr / 300hr limited warranty.

Features:

• Welded Steel Deck
• Welded fabricated steel deck helps add durability and can extend the mower's life.
• Wider Stance
• Designed to provide ample room adding to the comfort for the operator.
• Smooth Trak™ Steering
• Precision control designed to help trim and maneuver easily around obstacles.
• Bolstered Seat
• Helps provide a comfortable ride with armrests and airflow to the back.
• Rubber Floor Mat
• Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
• Fabricated Frame
• Continuous one-piece 1½ inch by 3 inch welded tubular frame.
• Foot-Operated Deck Lift
• Easily adjust the deck height between 1.5" - 4.5".
• Easy to Service
• Flip-up seat pan, removable floor pan, vented pulley covers.
• Exclusive Big Bite™ Rear Tires
• We worked directly with the tire manufacturer on this design.
• Kawasaki® Power
• Powered by a V-Twin Kawasaki® Engine.

Specifications:

Mower Deck:

• Width: 42 inches
• Cutting Height: 1.5 inches to 4.5 inches
• Grass Catcher: Non-powered, 2-bag, 5.4 bushel
• Dimensions (L x W x H): 91.4 inches x 56.5 inches

Engine:

• Model: Kawasaki FR651
• Power: 21.5 HP
• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Transmission:

• Type: Dual Hydrostatic
• Model: Hydro-Gear ZT-2200
• Capacity: 3 gallons
• Speed: Up to 7 mph
• Steering: Integrated with steering levers
• Warranty: 3 Year Warranty

Wheels:

• Front Tires: 11 x 5
• Rear Tires: 18 x 8.5-8 BigBite™

Comfort Features:

• Seat: Bolstered high-back seat with armrests and built-in lumbar support

Dimensions & Weight:

• Length: 69.9 inches
• Width: 45.5 inches
• Height: 43 inches
• Weight: 567 lbs

Additional Information:

• Residential Warranty: 3 Year/300 hour

Description:

Hustler Super Z Zero-Turn Mower 60" Kawasaki FX1000 EFI 38.5 HP (942854)

The Super Z® stands apart with Hustler’s acclaimed VX4® deck technology proven to cut and disperse grass more quickly and efficiently regardless of conditions.

Features:

• VX4® Deck - Fabricated 7 ga. steel deck engineered to move more grass at high-speeds while maintaining cut quality.
• Foot Operated Deck Lift - Easily adjust the deck height between 1”- 5.5” with your foot.
• I3M Suspension Seat - High-back seat with 3-inch travel range.
• SmoothTrak™ Steering - Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
• Large Fuel Capacity - Large 11.7 US gal. fuel tank for all-day mowing.
• Easy Serviceability - Flip-up seat pan, removable floor pan and vented pulley covers for easy and simple maintenance.

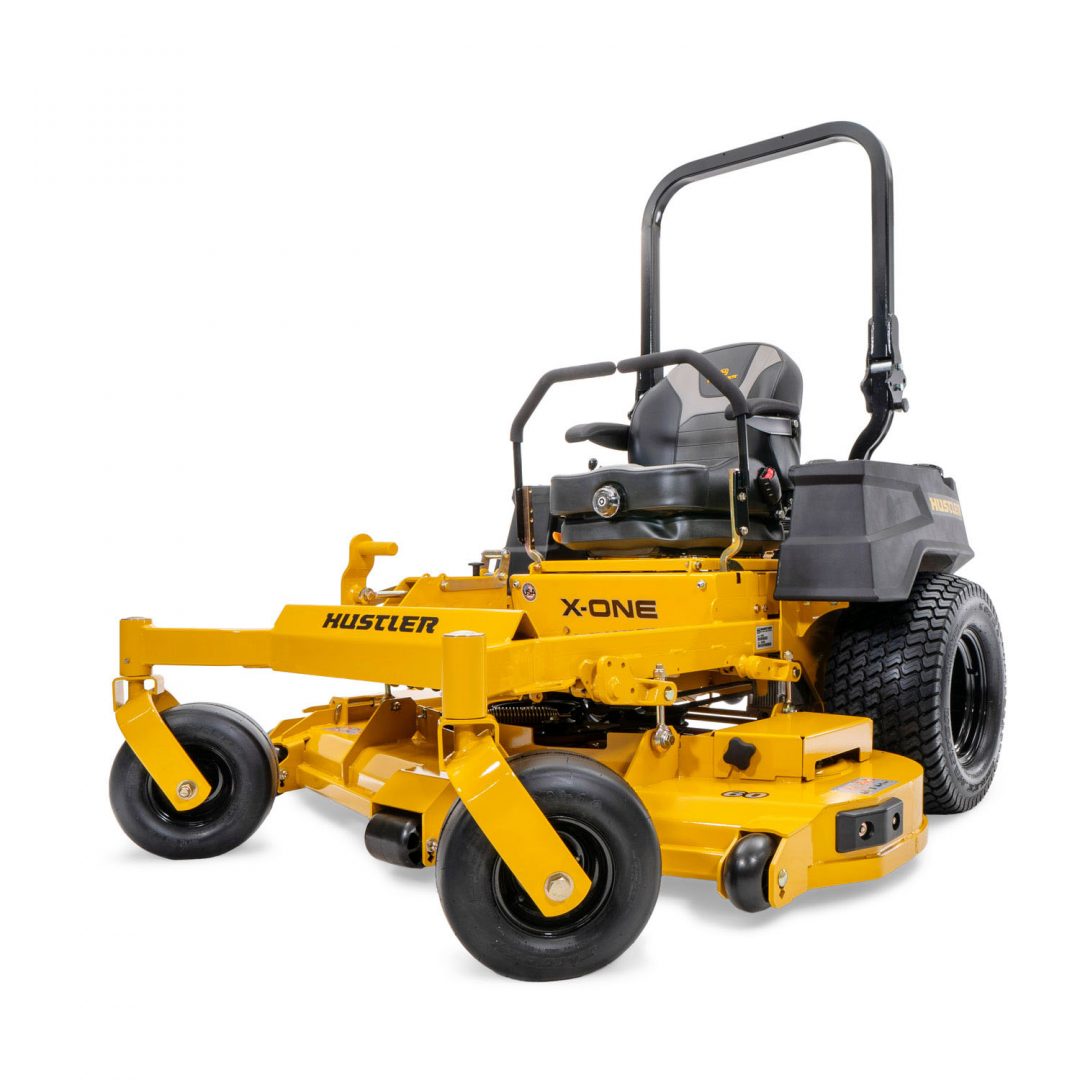

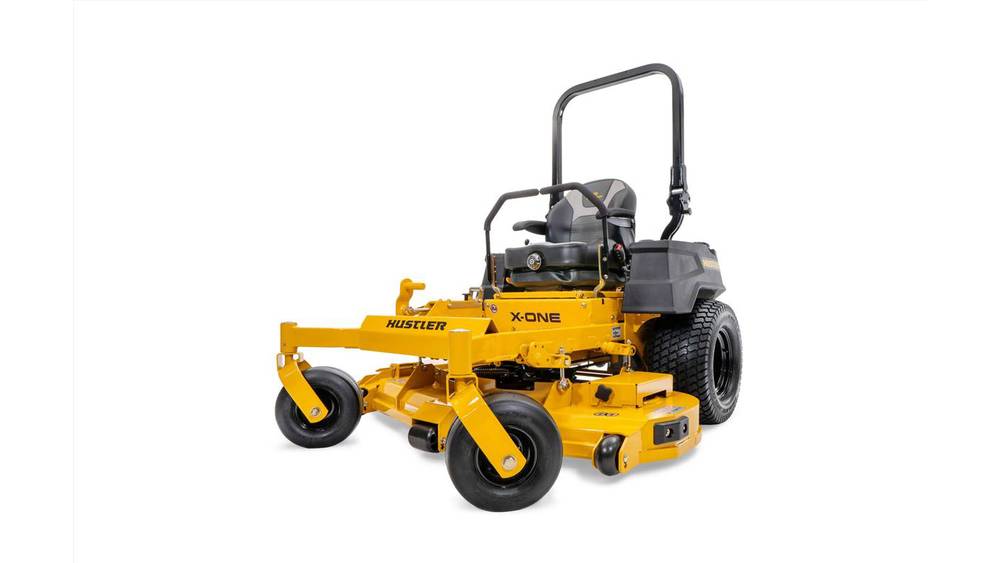

DESCRIPTION

Built For All Day, Every Day Performance.

The X-ONE® is built for the full-time commercial landscaper to provide all day, every day performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.

ENGINE

• Engine Manufacturer: Kawasaki FX850
• Engine Horsepower: 27
• Displacement: 852cc
• Cooling: Air Cooled
• Engine Warranty: 3 Year Warranty
• Air Cleaned: Heavy Duty Canister

DRIVE SYSTEM

• Type: Dual Hydrostatic
• Transmission: Parker unitized 12cc/rev pump with 15.9ci/rev wheel motors
• Fuel Capacity: Duel fuel tanks w/ 12 gal. total capacity
• Ground Speed (FWD): Up to 10.5 mph
• Parking Brake: Integrated with steering levers
• Hydraulic Cooling: Transmission mounted fan

DECK

• Cutting Width: 60", 60" Rear Discharge
• Cutting Height: 1" to 5.5"
• Deck Depth: 5.5"
• Deck Lift: Foot Operated
• Number of Blades: 3
• Blade Length: 20.5"
• Blade Tip Speed: 18,800
• Spindles: Ductile cast iron with steel shaft and sealed ball bearings
• Deck Engagement: Electric PTO Clutch
• Deck Material: Fabricated 7 gauge with 7 gauge wrappers
• Spindle Mounts: Reinforced 7 ga. stamped disc, Rear Discharge: 10 gauge with 11 gauge doubler
• Impact Trim Area: Front of deck: 11 gauge formed channel with rolled edge

CONSTRUCTION

• Frame: 1.5" X 3" steel tubing
• Front Axel: Fabricated with tapered roller bearings
• Front Caster Wheel: Tapered wheel bearings and debris cap
• Front Caster Fork: Fabricated 1/2" steel

GENERAL

• Seat: I3M Suspension Seat
• Cup Holder: Yes

DIMENSIONS

• Front Tire (inches): 13 x 6.5-6
• Drive Tire (inches): 24 x 12-12
• Weight (lbs): 1245, 1305 Rear Discharge
• Height (inches): 49, 72.5 w/ ROPS up
• Length (inches): 80.2
• Width w/ chute up (inches): 62.4, 61.72 Rear Discharge
• Tire-to-tire Width (inches): 54.5
• Productivity (acres per hour): 6.36

WARRANTY

• Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

DIMENSIONS WITH CATCHER

• Catcher Style: 3-bag
• Powered / Non-Powered: Powered
• Catcher Capacity: 12 bushel
• Mower Length w/ Catcher: 111.1"
• Mower Width w/ Catcher: 70.9"
• Style 2: Catcher Style: BAC-VAC
• Style 2: Powered / Non-Powered: Powered
• Style 2: Catcher Capacity: 10 bushel
• Style 2: Mower Length W/ Catcher: 108.3"
• Style 2: Mower Width W/ Catcher: 70.9"

KEY SPECS

• Engine Manufacturer: Kawasaki FX850
• Engine Horsepower: 27
• Transmission: Parker unitized 12cc/rev pump with 15.9ci/rev wheel motors
• Fuel Capacity: 11.7 gal.
• Ground Speed (Fwd): Up to 10.5 mph
• Cutting Width: 60", 60" Rear Discharge
• Cutting Height: 1" to 5.5"
• Front Tire: 13 x 6.5-6
• Drive Tire: 24 x 12-12
• Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

ACCESSORIES

• 3-Bag Powered Bagger: Easy-on, easy-off blower and hopper assemblies. Holds 12 bushels.
• Mesh Side Bagger: Easy-on, easy-off bagger has a 3-bushel capacity.
• Steel Side Bagger: Easy-on, easy-off bagger has a 3.5 bushel capacity.
• BacVac Bagger: Electric-accuated DFS bagger system. Easy-on, easy-off versatility with a 10-bushel capacity.
• MICHELIN® X® TWEEL® TURF CASTER: The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.
• MICHELIN® X® TWEEL® TURF: The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. 60" and 72" X-ONE models, 60", 66" and 72" Super Z models only.
• Semi-Pneumatic Front Tires: Flat-free front tire option.
• Mulch Kit: Recycle clippings back into the soil and reclaim nutrients for your lawn.
• Single Anti-Scalp Wheel: Additional kit for increased deck scalping protection. Two height settings. Can be used in conjunction with the dual anti-scalp kit.
• Light Kit: Extend your productivity into the late hours with our optional light kit. Kit contains two high-quality 12-volt lights with a switch that mounts in the instrument panel.
• Steering Lever Extension Kit: Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.
• Stripe Kit: Helps provide a professional manicured finish to your lawn.
• Flex Forks®: Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.
• Rear Hitch Kit: Rear hitch kit available for multiple user applications.
• Electric Deck Lift: Raise and lower the deck with the flip of a switch. This electric lift kit consists of simple bolt on hardware and switch installation.

FEATURES

• Commercial-Grade Engines: Kawasaki® FX, Kohler® Command Pro® and Vanguard® Engine options
• I3M™ Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.
• VX Deck: Engineered for extreme vaccum, the all new Hustler VX deck more efficiently.

Description:

Hustler X-One 60″ Kawasaki EFI Zero Turn Mower – 941898

The X-ONE® is built for the full-time commercial landscaper to provide all day, every day performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.

Stock Number:941898MakeHustler

ModelX-One 60"

Deck Size60"

Horsepower29.5

Main CategoryZero-Turn Mowers

DealHustler

All MowersAll Mowers
