Description:

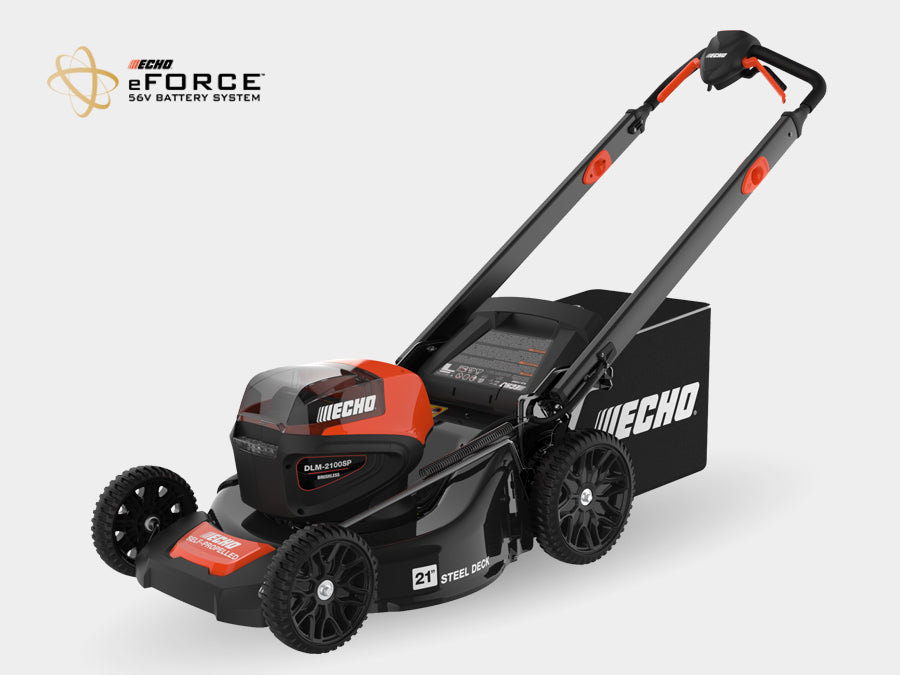

The DLM-2100SP self-propelled mower, powered by the eFORCE® 56V battery system, delivers hassle-free mowing with legendary ECHO power. With an auto-switch dual-battery dock, three quick-switch clippings discharge settings and a large 21-in. cutting deck, it makes cuts without compromise.

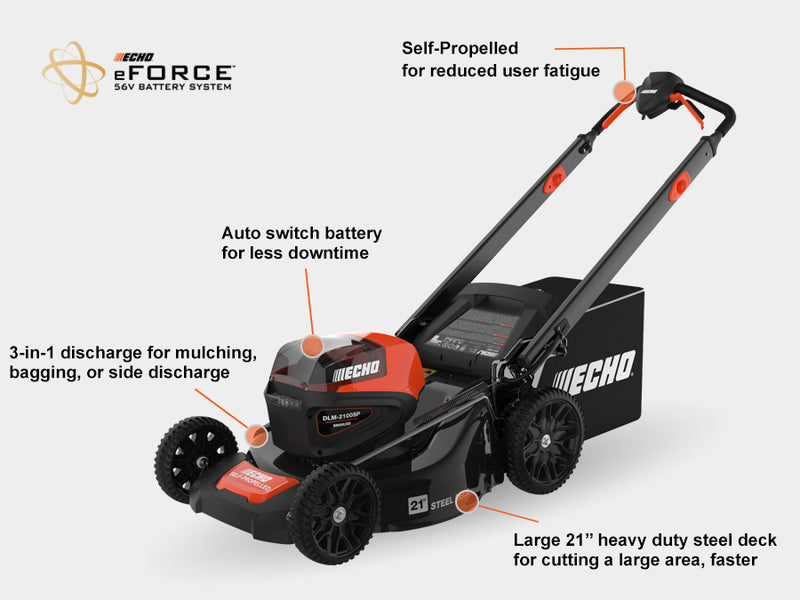

Features:

• Large 21 in. heavy-duty steel deck cuts more area faster
• 3-in-1 discharge for mulching, bagging or side discharge
• Auto switch battery for less downtime

Specifications:

Battery:

• Voltage: 56V
• Motor: Brushless
• Battery Capacity: 5.0Ah
• Battery Capacity (Wh): 252 Wh
• Run Time: Up to 70 minutes
• Charging Options:
• Standard Charger: Included
• Rapid Charger: Available
• Recharge Time:
• Standard Charger: 150 minutes
• Rapid Charger: 75 minutes

Cutting Specifications:

• Cutting Height: 1-4 inches

Warranty:

• Tool Warranty: 5 years consumer, 2 years commercial
• Battery Warranty: 2 years consumer, 2 years commercial

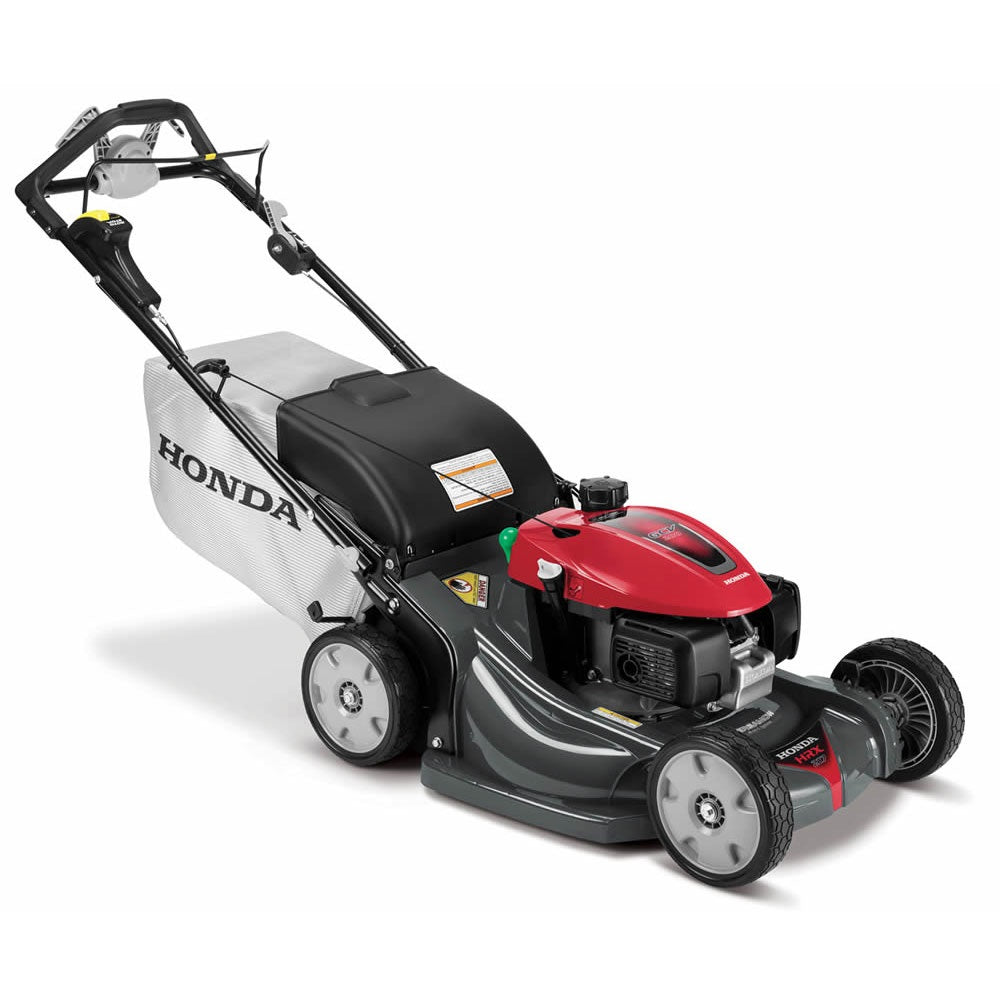

Description:

Features:

• Roto-Stop® blade stop system
• Variable speed Select Drive®
• Easy starting Honda GCV200 engine
• 4-in-1 Versa mow System™ with Clip Director® - mulch, bag, discharge, and leaf shred

Specifications:

• Full Model Name: HRX217K6VYA
• Carton Label: HRX2176VYA

Engine:

• Engine: Honda GCV200

Deck:

• Deck Material: NeXite®
• Cutting Width: 21"
• Mowing Height Range: 3/4" - 4"
• Mowing Height Adjustments: 7

Drive Control:

• Drive Control: Infinitely Variable Select Drive®
• Transmission: Variable Speed Fixed Gear Belt Clutch
• Ground Speed: 0 to 4 mph

Starter and Choke System:

• Starter: Recoil
• Choke System: Automatic
• Throttle Control: Manual

Handle:

• Drive: Slipping Belt
• Handle Material: 1" Steel Tube
• Handle Height Positions: 3

Wheels:

• Wheel Size: 9" Plastic
• Ball Bearing Wheels: All

Functions:

• Standard Functions: 4 in 1 Mulch/Bag/Leaf shred/Discharge
• Bag: Standard
• Bag Capacity: 2.5 bushels

Blades:

• Blades: Twin blades (MicroCut System®)
• Blade Control: Blade stop system (Roto-Stop®)

Discharge:

• Side/Rear Discharge: Rear standard

Weight:

• Dry Weight: 95 lb
• Operating Weight: 97 lb

Warranty:

• Residential Warranty: 5 years
• Commercial Warranty: 90 days

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.

Features:

Mow with Ease

• Front Swivel Caster Wheels: Enhance maneuverability in landscaped areas with front swivel caster wheels. Convert fixed wheel models to swivel with an available accessory.

Fully Fabricated and Welded Steel Cutter Deck

• Military-Grade Steel Deck: Constructed with a 14-gauge, grade 100 Military-Grade steel deck shell, 12-gauge spindle reinforcement plate, and ¼” side reinforcement bar for unmatched durability and a quality cut.

Fully Fabricated and Welded Steel Frame

• Military-Grade Steel Frame: The steel frame is over 200% stronger than standard drawing steel used in common stamped frames and decks, providing superior strength and longevity.

Single Point Height-of-Cut Adjustment

• Fine-Tuned and Simple: Easily adjust the cutting height from a single location, with settings from 1.5” to 5” in .25” increments, eliminating the need for multiple adjustments.

Offset Blade Setup

• Simplified Deck Drive System: Features a less complex, easier-to-maintain offset blade design compared to traditional timed deck setups. Reduces repair/replace time for belts.

Scag Level Quality-of-Cut

• Unmatched Performance: Large cutting chamber processes more grass and efficiently handles wet and lush springtime grasses. Oversized discharge opening for superior performance.

Operator Control Panel

• Ergonomic Controls: Controls are designed to match the natural angles of your hands, making them easily accessible. Includes blade brake engagement, drive engagement, recoil start, throttle/choke, hour meter, and park brake.

Oversized Adjustable Controls

• Achieve Maximum Comfort: Oversized handles with internally routed cables for protection and tool-free height adjustment for operator comfort. Includes vertical adjustment for transportation or storage.

Discharge – Mulch – Bag

• 3-in-1 Versatility: Offers discharge, mulch, or bag options. Standard equipment includes discharge chute, deck plug and mulch plate, bagging baffle, and fabric bag for flexible operation.

Powerful Transmission & Engine Combo

• Maximum Power for Tough Cuts: Combines the GT MV702 transmission with the Kohler CV224 engine for optimal performance in demanding cutting conditions.

Specification:

• Description: 30″ fully fabricated steel cutter deck, Kohler 224CV engine – recoil-start engine
• Horsepower: 7

Product Dimensions

• Length – Transport (handles in upright transport position): 41″
• Length – Minimum (handles in highest operating position): 66″
• Length – Max (handles in lowest operating position): 73.5″
• Tracking Width: 28.75″
• Width (w/ discharge chute): 36.75″
• Width (w/ discharge block off plate): 31.5″
• Height – Lowest Operating: 36.75″
• Height – Max Operating: 45.25″
• Height – w/ Handle Bar in Storage Position: 57.5″
• Operating Weight – Bagging: 220 lbs.
• Operating Weight – Mulching: 214 lbs.
• Operating Weight – Discharging: 213 lbs.

General Specifications

• Total Fuel Capacity: 1 gallon (0.37 gallon capacity for California models)
• Rear Tires: 10.5″ x 3″ rubber tire with glass-filled polypropylene wheel
• Front Tires: 9” x 2.25” rubber tire with glass-filled polypropylene wheel
• Drive System Type: GT MV 702 Transmission
• Forward Ground Speed: Up to 4 mph
• Parking Brake: Hand lever

Deck Specifications

• Cutting Width: 30″
• Type: Extra-strong, fully fabricated and welded steel cutter deck. Offset blade, non-timed deck setup.
• Cutting Height: 1.5″ to 5″ in .25″ increments
• Blade Type: Optimized for maximum performance whether discharging, mulching, or bagging
• Deck Lift: Hand lever, single-point adjustment
• Construction: 14-gauge, grade 100 Military-Grade steel deck shell with 12-gauge spindle reinforcement plate, ¼” trim side reinforcement bar for extra protection against impacts
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Blade brake clutch allows operator to disengage cutter blades without shutting off the machine
• Discharge, Mulch, Bag: Standard
• Bag Capacity: 2.5 Bushels

Description:

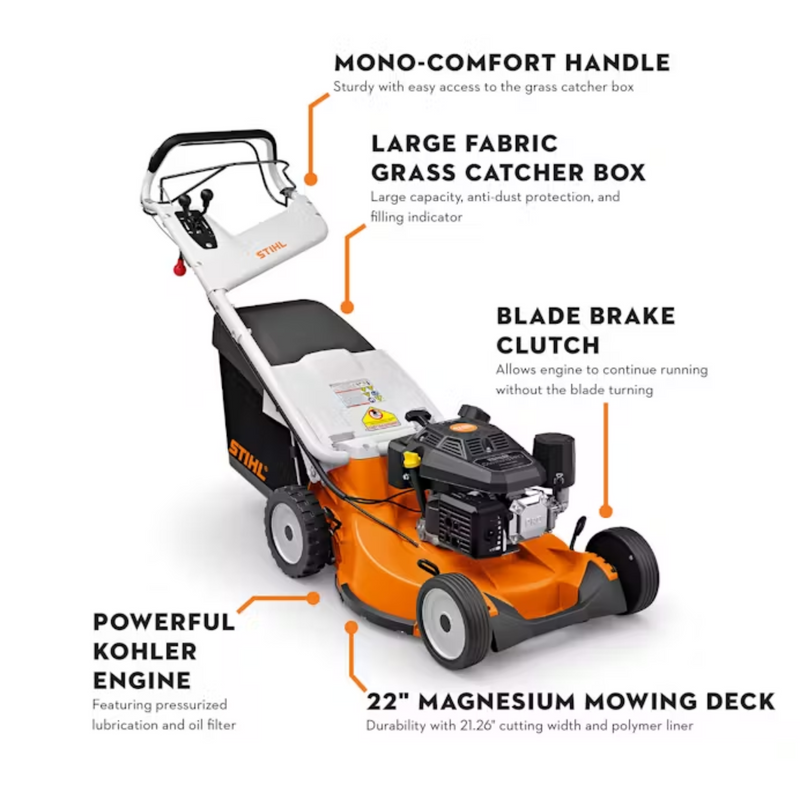

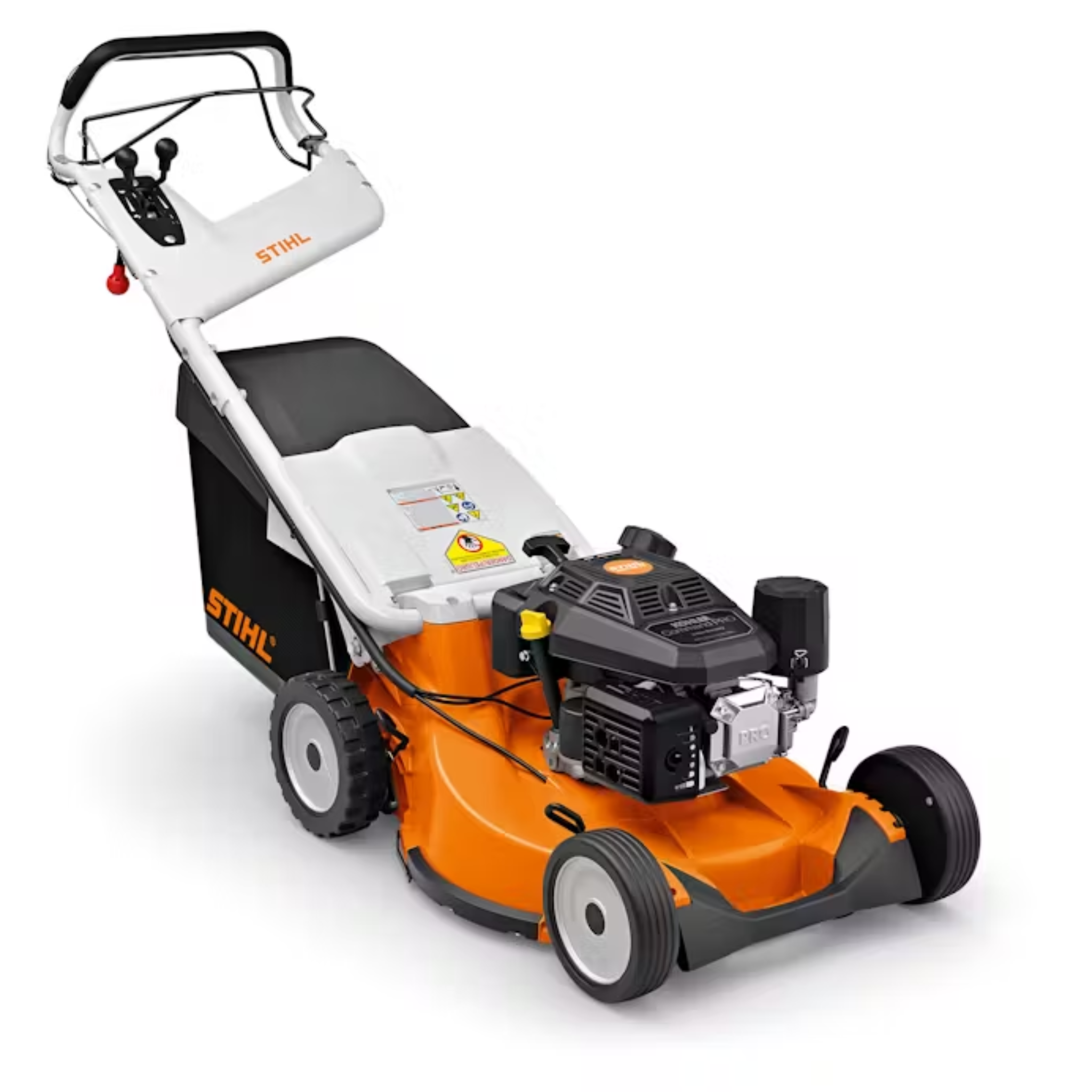

The STIHL RM 756 YC, featuring the mono-comfort handle, reliable Hydrostatic Drive System, and Kohler Command Pro engine with pressurized lubrication and an oil filter, offers professional power, performance, and longevity. Enjoy the large capacity of the foldable fabric grass bag, 22” magnesium mowing deck with a 21.26” cutting width, and replaceable polymer liner. The Blade Brake Clutch allows the operator to stop the mowing blade and remove obstacles in the mowing path without shutting off the engine.

Features:

• Kohler Command Pro CV200 Engine - The Kohler Command Pro engine features a cast iron cylinder and pressurized lubrication with an oil filter, providing powerful performance with dependable engineering.
• Blade Brake Clutch (BBC) - The BBC allows the user to leave the engine running and disengage the multiblade to remove objects in the mowing path without having to stop and restart the engine during brief stops.
• Hydrostatic Gearbox (Y) - The hydrostatic gearbox provides a wider range of ground speeds to reduce operator fatigue and increase productivity.
• 22 in. Magnesium Mowing Deck with Polymer Liner - The magnesium mowing deck with a replaceable polymer liner is lightweight for easy maneuvering but provides the strength and durability you need to take on mowing jobs.
• Hydrostatic Drive Transmission - The transmission offers an excellent power-to-weight ratio with infinite speed control.
• Solid Aluminium Wheels with Ball Bearings - The solid aluminium wheels with sealed ball bearings are designed for exceptionally long life.
• Fabric Grass Bag - The high capacity, compact, and foldable fabric grass bag is ideal for large lawns and reducing dust for optimal user comfort.
• Wear Plates and Steel Reinforcements - A steel bar on the leading edge of the mower, steel wear strips on the sides of the deck, and a steel skid plate covering the transmission all help prevent mower damage for a long service life.
• Integrated and Retractable Lift Handle - The unique retractable and integrated handle helps with lifting the mower or tipping it for service.
• Mono-Comfort Handlebar - The state-of-the-art mono-comfort handlebar enables easy access to the grass bag, height adjustment, and convenient foldaway storage.
• Rubberized Soft-Touch Handle - Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.

Specifications:

• Drive Type: Hydrostatic
• Deck Material: Magnesium with Polymer Liner
• Mulch Function: Plug (accessory)
• Cutting Height: 0.98" - 3.54"
• Weight: 134.5 lbs.
• Deck Width: 22 in.
• Cutting Width: 21.26 in.
• Cutting Positions: 6
• Number of Blades: 1
• Mowing Blade Speed: 2,800 rpm
• Self-Propelled: Yes
• Engine Brand: Kohler
• Engine Model: Command Pro CV200
• Displacement: 200 cc
• Rated Power: 9.5 lbs. ft. of torque
• Speeds: 0 – 3.72 mph
• Grass Catcher Capacity: 21.13 gal.
• Blade Brake Clutch: Yes
